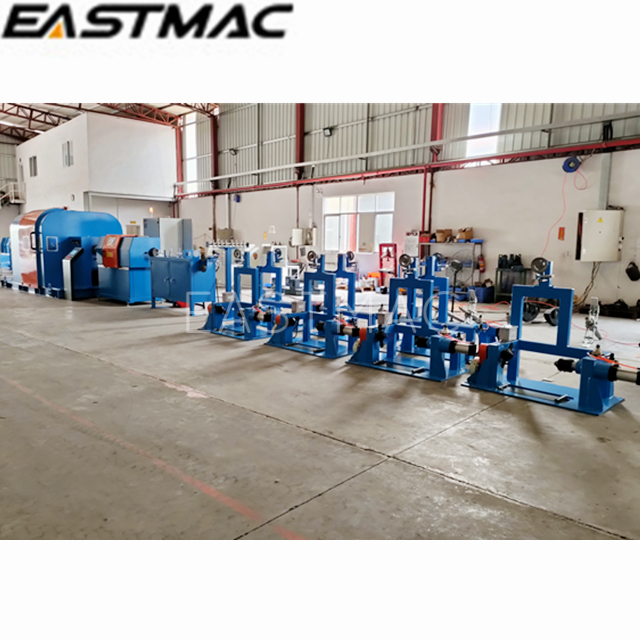

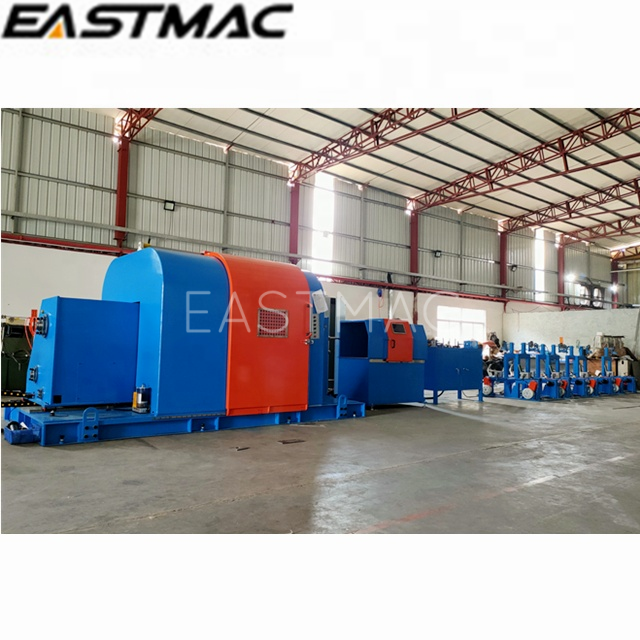

Cantilever type wire and cable single twister cabling machine

Item No.: 00437
Application: for various power wire, CAT 5 and ultra CAT 5 and CAT 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.
  • Model1000mm
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability10 Sets per Month
  • Payment TermsL/C, T/T, D/P, D/A
  • More Less
    Description
    Description

    Application: for various power wire, CAT 5 and ultra CAT 5 and CAT 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.





    Main technical data:

    Model

    400-500

    630

    800

    1000

    1250

    Pay-off bobbin(mm)

    300-400mm

    400-500-630

    400-500-630

    400-500-630

    400-500-630

    take-up bobbin(mm)

    500

    630

    800

    1000

    1250

    Wire diameter(mm)

    0.5- 2.0 (Soft structure)

    0.6- 3.0(Soft structure)

    0.6-3.0(Soft structure)

    1.0-5.0 (Soft structure)

    1.0-5.0 (Soft structure)

    Max twsit diameter(mm)

    Φ6

    Φ15

    Φ20

    Φ25

    Φ30

    Lay length(mm)

    13-80

    20-200

    30-300

    30-350

    30-350

    Roatte speed(RPM)

    850

    1000

    800

    800

    500

    Take-up tension

    Auto tension,adjust freely

    Traverse method

    According to bobbin speed reciprocating movement to adjust

    Traverse pitch(mm)

    2.5-10

    2-12

    3-20

    3-30

    3-30
