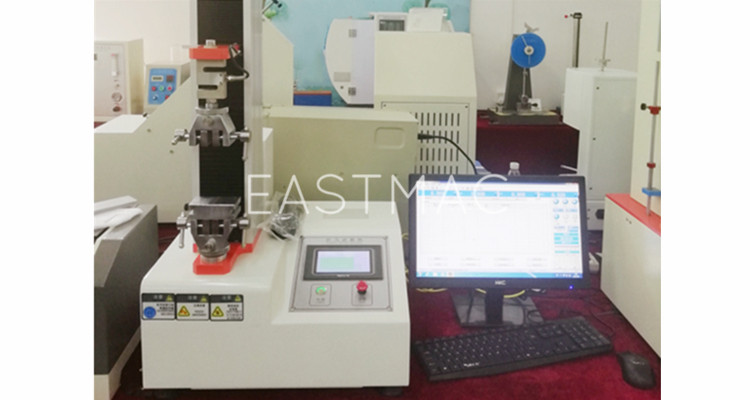

Computerized Touch Screen Single-column Tensile Testing Machine
Application:
It is suitable for the tensile strength, stripping strength, deformation rate, opening force and other performance tests of plastic film,
composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber etc.
Adhesive tape, automobiles, ceramics, composite materials, construction, food and medical equipment, metal, paper, packaging,
rubber, textiles, wood, communications and various special-shaped materials
Main Technical Data:
|
Capacity |
50kg 100KG |
|
Measurement accuracy |
±1% |
|
Resolution |
1/200000 |
|
Test speed |
0~300 mm/min |
| Effective stroke | 600 mm |
| Test space | 120 mm |
| Power | Speed-regulating motor |
| Optional | Tension clamp (conventional) |
| Weight | about 40 kg |
| Power supply | 1PH, AC220V, 50/60Hz |
