High efficiency and precision electro-hydraulic servo universal tension tester testing machine for wire and cable

Item No.: 00488
This machine is mainly used for tensile, compression, bending, shearing and other mechanical performance tests and analysis of metal and non-metal materials., adopts the test space adjustment structure directly with the large-stroke jack, and the two-pill
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability50 sets per month
  • Payment TermsL/C, T/T, D/P
  • More Less
    Description
    Description

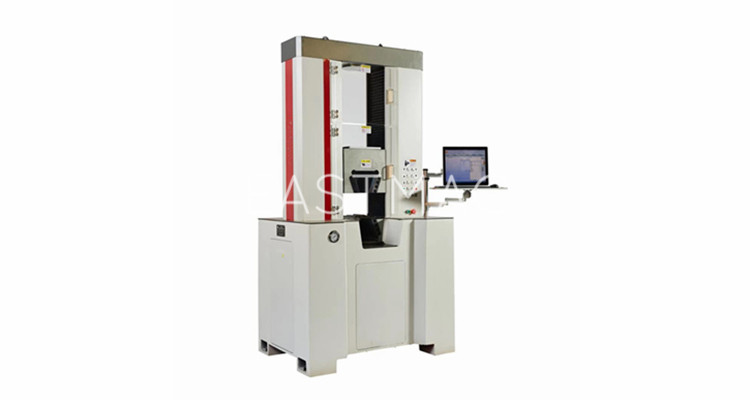

    WAW series microcomputer controlled electro-hydraulic servo universal testing machine



    Application:

    This machine is mainly used for tensile, compression, bending, shearing and other mechanical performance tests and analysis of
    metal and non-metal materials., adopts the test space adjustment structure directly with the large-stroke jack, and the two-pillar
    guiding structure has the characteristics of good stability, high control accuracy, ultra-quiet, and no vibration.



    Main Technical Data:

    Max. test force (kN)

    1000

    Force, displacement, deformation measuring range

     1%-100%FS



    Force, displacement, deformation resolution

    1/300000FS

    Accuracy of force, displacement and deformation indication

     ≤±0.5%



    Force rate control range (FS/s)

    0.01%~3% FS

    Strain constant rate control range (/s)

    0.00003-0.0005

    Speed control accuracy

     ≤±2% set value

    Tensile specimen clamping method

    hydraulic

    Whole machine voltage

    AC220V±10%
