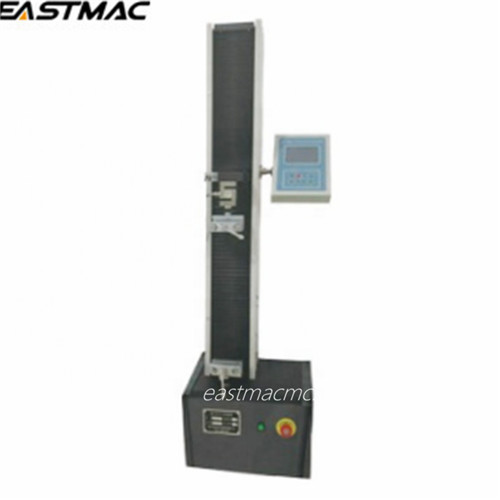

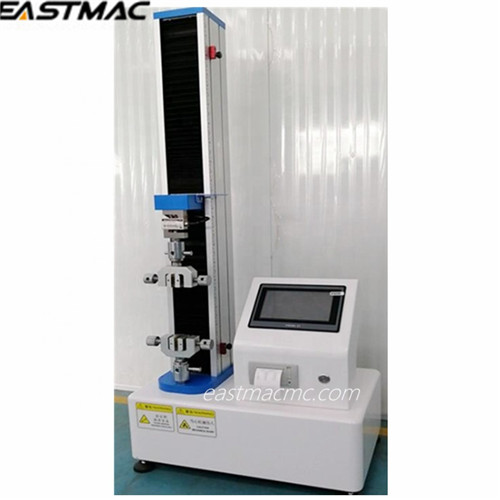

LDS-5 Electronic Tensile Testing Machine (5kN)
Application:
The machine can measure the tensile force, tear, peel and other resistance properties of various materials. Used for testing the elongation and tensile strength of electric wire and the tensile and tensile strength of textile and leather.
Technical parameters:
|
Maximum allowable load |
5000N.(Optional within 5000N) |
|
Load Yuan |
5000N |
|
Load measurement accuracy |
load yuan +LDS display ±1%(5%-100% of the full scale) |
|
Optional unit |
N, KN, MPA (choose one of them before leaving the factory and cannot be changed and switched) |
|
Resolution |
1/20000 |
|
Displacement resolution |
0.01mm |
|
Power system |
AC motor, timing belt |
|
Control system |
test speed 0~500 mm/min stepless speed regulation |
|
Data sampling frequency |
|
|
Coupling stroke |
800mm |
|
Automatic calculation of its average value, |
automatic capture of the maximum, the fracture of the force value. |
|
Display mode |
LDS dark blue LCD screen Chinese display, film touch mode key |
|
Power supply. |
AC 220V single phase |
|
Power |
400W |
|
Machine size |
about 600x450x1600mmLl* W* H) |
   |
