CCA ACS CCS Al strip production line

High efficient Copper Clad Aluminum Wire Production line

Item No.: VOL-14
High accuracy Copper and Aluminum Cladding Machine
Quantity
-
+
Description
Description

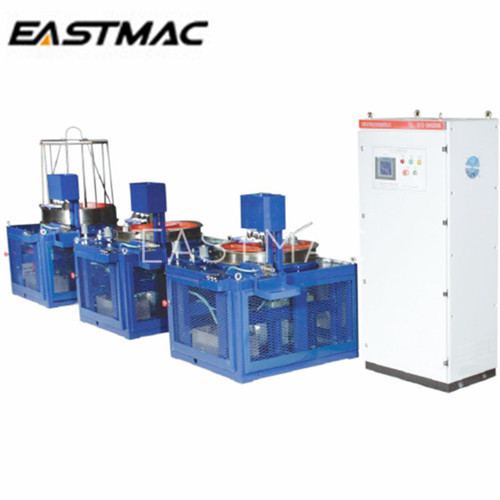

 Copper Clad Aluminum Wire Drawing Machine



High efficient Copper Clad Aluminum Wire Production lineHigh efficient Copper Clad Aluminum Wire Production lineHigh efficient Copper Clad Aluminum Wire Production line

Specification of VTL 10 /VTL 12 / VTL 15



0

Copper by area

15%CCA

12%CCA

10%CCA

Copper by weight

38%

32%

30%

Machine type

VTL-10

VTL-12

VTL-14

1

Raw material

Aluminum rod

(mm)

raw

Φ9.5

Φ12

Φ15

Pre-drawing

→9.0/8.6

→11.5/11.0/10.6

→(14.3/13.6)→(13.0/12.6)

degrease

Φ8.6

Φ10.6

Φ12.6

Copper strip(mm)

31.4*0.38~0.40

37.7*0.36~0.38

44.0*0.38~0.40

2



Brush and wrapping

and welding(mm)

Φ10

Φ12

Φ14

3

 Drawing by slowly for no bound

4

Metallurgically bound

CCA

Φ3.0

Φ4.2

Φ5.6

CCAM

Φ2.5

//

//

5

Fast drawing after bound

6

Degrease and testing and winding

7

Fine drawing

Well type annealing for final big size wire

8

Continue pipe type annealing for final fine wire

9

Capacity per day (22 hours )

1.8tons

2.5tons

3.2 tons

10

Min. wire size after drawing

0.12mm

0.18mm

1.0mm
