Optic Fiber Cable Production Line

High efficient optic fiber ribbon secondary coating line for 144 ribbon loose tube with cage type pay-off

Item No.: 00112
Optic fiber ribbon secondary coating linee is mainly used to extrude the loose tube that is filled with gel and 2-12 fibers. It also can be used to extrude the secondary coating for optical fiber ribbon (12fiber×ribbon). Suitable extruded material is PBT.
Quantity
-
+
Description
Description
Product Description

Application:

Optic fiber ribbon secondary coating linee is mainly used to extrude the loose tube that is filled with gel and 2-12 fibers. It also can be used to extrude the secondary coating for optical fiber ribbon (12fiber×ribbon). Suitable extruded material is PBT.VC,TPU.



Products produced by Premise cable production line:

high efficient optic fiber ribbon secondary coating line for 144 ribbon loose tube with cage type pay-off



Main technical data:

  Number of opticl fiber ribbon

  12

  Extruder

  SJ65×25

  Production Speed

  Max 70m/min(7mm)

  Max rotation speed of cage

  0-120rpm

  Stranding pitch of fiber ribbon

  500-3000mm

  Fiber ribbon pay-off tension

  2N--10N±0.5N

  Range of E.F.L

  0.05%--0.2%(7mm-10.4mm)

  Take-up reel size

  PN1250mm



Main Parts:

3.1 12 reels of optical fiber pay-off

3.2 12 reels of fiber ribbon pay-off cage(with the gel pre-filling device)

3.3 Optical fiber gathering device(with electrostatic dust collector)

3.4 Bubble removing and gel-filling device

3.5 65/25Extruder(with feeding, drying and mixing device)

3.6 Extruder head and dies

3.7 8m hot water trough and tank (the front trough is movable)

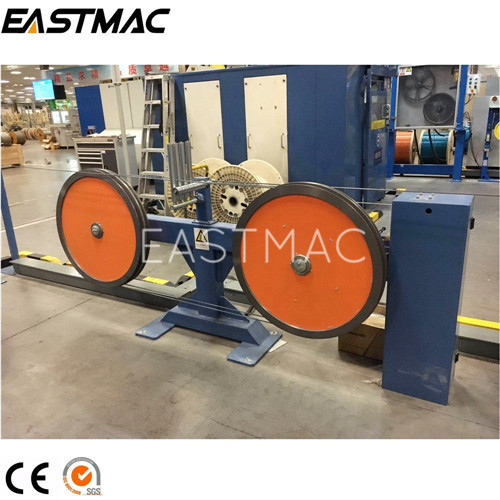

3.8 Double wheel capstan for over-length

3.9 200kg caterpillar

3.10 16m cooling water trough and tank (with 5P refrigerating tank)

3.11 Blow dryer

3.12 Two dimensional diameter gauge

3.13 Tension controller for over-length

3.14 Type 800 single wheel capstan

3.15 Tension controller for take-up

3.16 PN800 automatic double spooler

3.17 PN1600 gantry movable take-up and  tension controller

3.18 Electric control system
