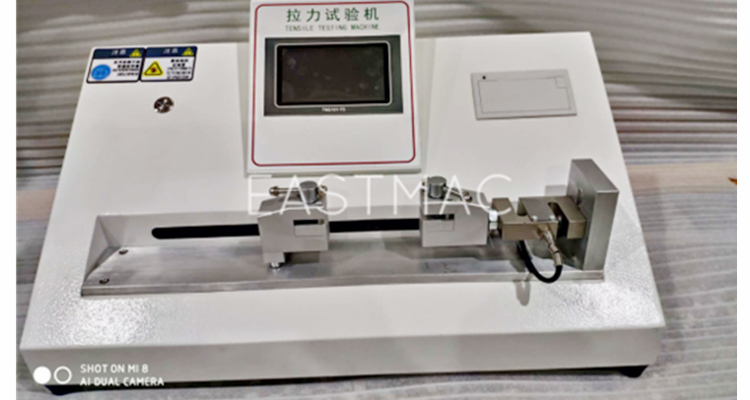

50kg Touch Screen Horizontal Tensile Testing Machine
Application:
The microcomputer-controlled horizontal tensile testing machine adopts hydraulic afterburner, computer automatically collects data,
prints the results, convenient operation, high test accuracy, and stable afterburner. It can be used for stretching, shearing and tearing
of metal and non-metal materials. It can meet various test methods and standards such as ISO and GB. This equipment is widely used
in the wire and cable industry and quality inspection agencies at all levels.
Main Technical Data:
Capacity |
50kg |
Measurement accuracy |
±1% |
Resolution |
1/200000 |
Test speed |
0~300 mm/min |
Effective stroke |
300 mm |
Test space |
120 mm |
Power unit | kgf, gf, N, kN, lbf |
Stress unit | MPa, kPa, kgf/cm2, lbf/in2 |
Result output | micro printer |
Power | Speed-regulating motor |
