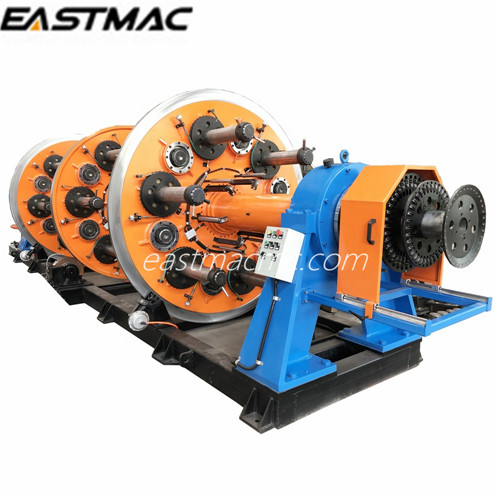

Application:
This machine is mainly used for copper wire screening for power cable and stranding of insulated wire.
Products produced by Disk type screening machine:
Main technical data:
|
Max. OD of cable |
30mm |
|
Copper wire diameter |
1.0-2.0mm |
|
Diameter of insulated wire |
1.6-4.0mm |
|
Pay-off size |
PND630 |
|
Max. rotating speed of 18B cage |
100r/min |
|
Screening pitches |
50-1000mm |
|
Max. Rotating speed of non-metallic taping head |
800r/min |
|
Max. haul-off force |
2000kg |
|
Max.Haul-o ff line speed |
30m/min |
|
Motor power |
45kW (AC motor) |
|
Caterpillar motor power |
11KW(AC motor) |
Main Parts:
1. 630 motorized pay-off stand
2. 1800 column type pay-off
3. #-shape guiding stand

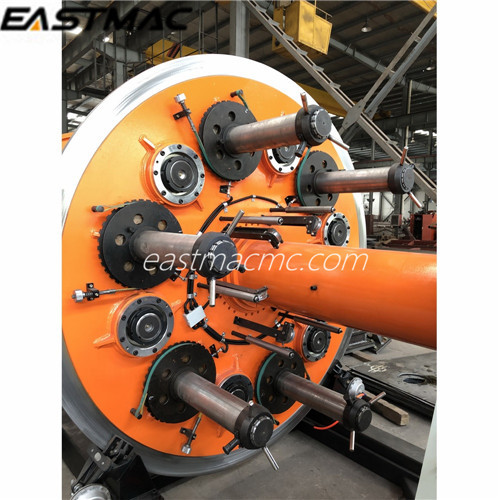

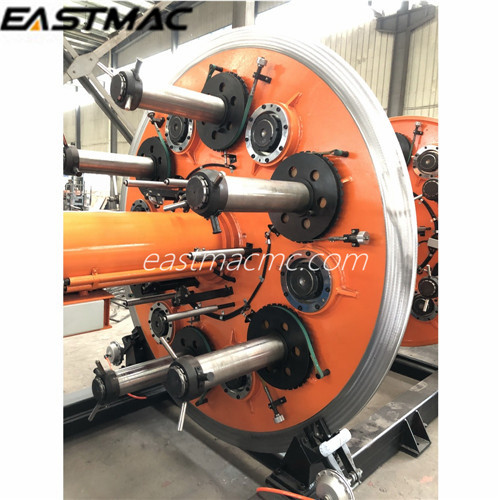

4. 630/12B cage
5. Wire die holder
6. Longitudinal taping device
7. Concentric taping head
8. Meter counter
9. 2000kg Caterpillar
10. 1800 column take-up & traversing
11. Electrical control system
