Application:
The production line use different dies to produce metal sheathing for railway signal cables, flexible fireproof cables, medium voltage cables, copper alloy through ground wires for high speed train and other cables. The production line can produce metal sheath for railway signal cables, flexible fireproof cables, medium-voltage cables etc. After precise cutting the clean copper tape’s two sides (or aluminum tape and stainless steel tape), used the special welding fabrication mould is used for longitudinal shaping and continue welding longitudinal seam with protection of indifferent gas. The finished products are made through reduction diameter pipe.

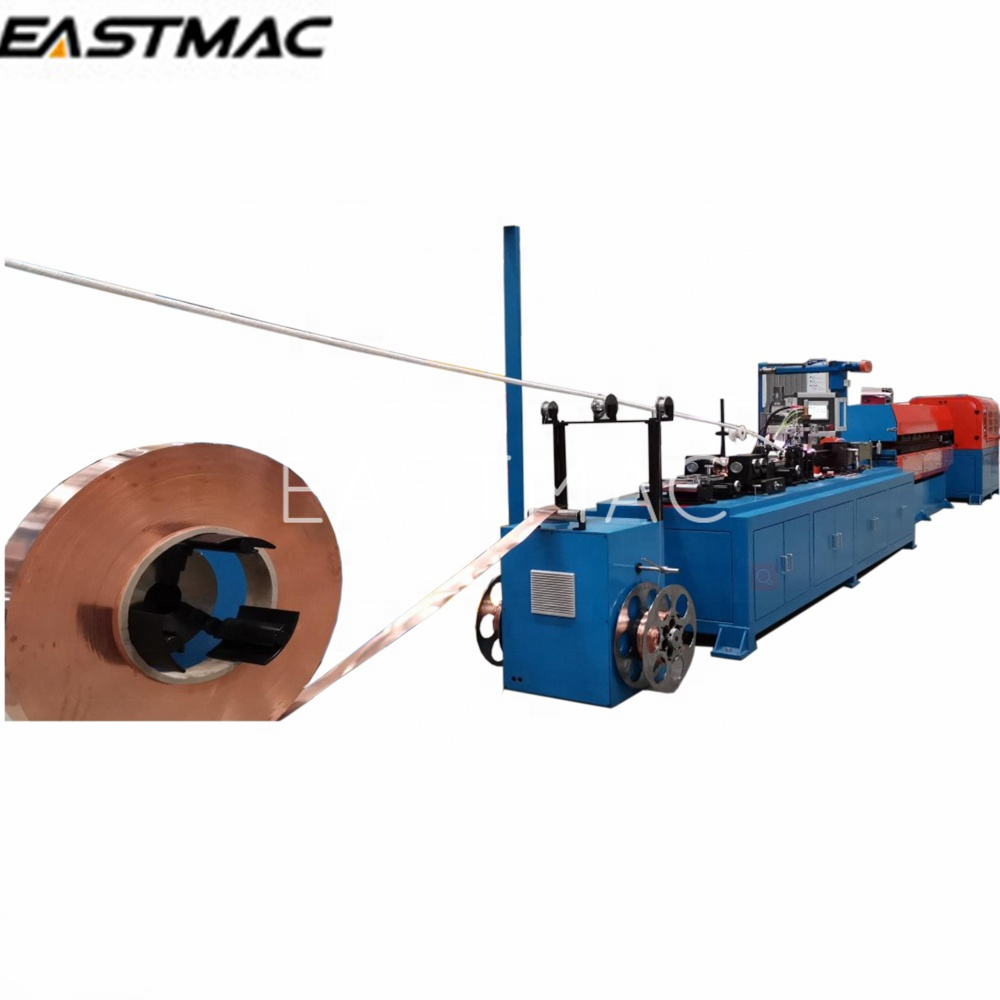

Products produced by DAG10-60 metallic pipe forming and corrugating tandem line:
Main technical data:
|
1 |
Welding dia. |
10-60mm |
|
2 |
Cable dia. |
8-56mm |
|
3 |
Welding material |
Copper tape, Al tape, Stainless steel tape |
|
4 |
Linear speed |
0-20mpm |
|
5 |
Welding current |
30-300A |
|
6 |
Corrugating shape |
Ring type and spiral type |
|
7 |
Corrugating depth |
0.5-4mm |
|
8 |
Corrugating pitch |
5-25mm |
Main Parts:
