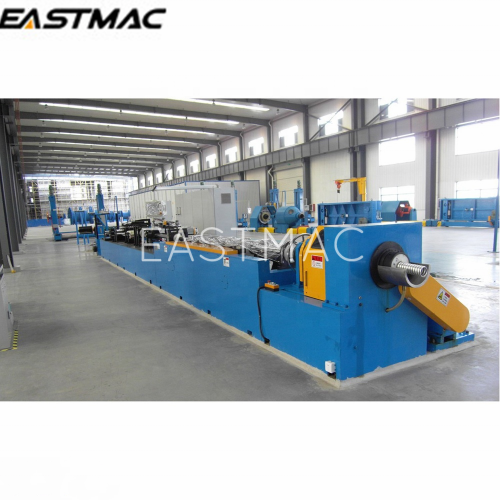

High quality DAG45-180 Argon arc welding and corrugation line tandem with extruder for EHV cable smooth tube diameter reduce

Item No.: 00337
The whole machine adopts computer (touch screen) control mode, infinite speed regulation for frequency conversion, TV monitoring on the welding spot. The electric current and speed can be tracked synchronously.
  • ModelDAG45-180
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability20 sets per month
  • Payment TermsT/T, L/C
  • More Less
    Description
    Description

    Application:

    The whole machine adopts computer (touch screen) control mode, infinite speed regulation for frequency conversion, TV monitoring on the welding spot. The electric current and speed can be tracked synchronously. It is applicable for welding various lengths.

    The machine cabinet is imported from Germany; the majority of the electric components are imported form famous joint-venture’s production in China. PLC, touch screen and frequency converter are Siemens. The main welder is V-405 of U.S Lincoln. Bearings adopt HRB, it is Chinese famous production.

    2-welding gun system is using in this line, which is improved the linear speed to 1.5~2 times. Tungsten electrode’s using life is extended. When producing cables, the line no need to stop, more efficient for the production of longer cable.

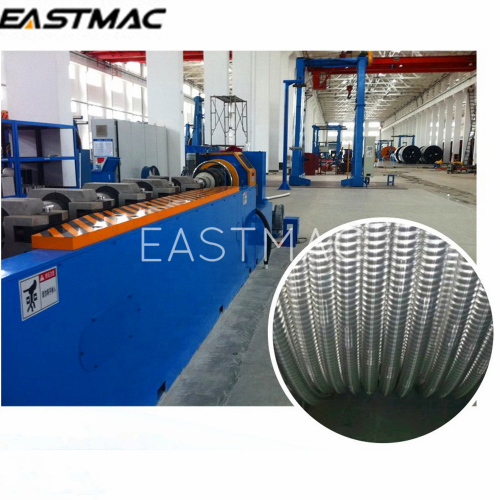

    Products produced by  DAG45-180 Argon arc welding and corrugation line:

    High quality DAG45-180 Argon arc welding and corrugation line tandem with extruder for EHV cable smooth tube diameter reduce

    Main technical data:

    1

    Welding dia.

    60-180mm

    2

    Cable dia.

    50-160mm

    3

    Welding material

    Copper tape, Al tape, Stainless steel tape

    4

    Linear speed

    0-20mpm

    5

    Welding current

    30-300A

    6

    Corrugating shape

    Ring type and spiral type

    7

    Corrugating depth

    1-8mm

    8

    Corrugating pitch

    10-50mm

    Main Parts:

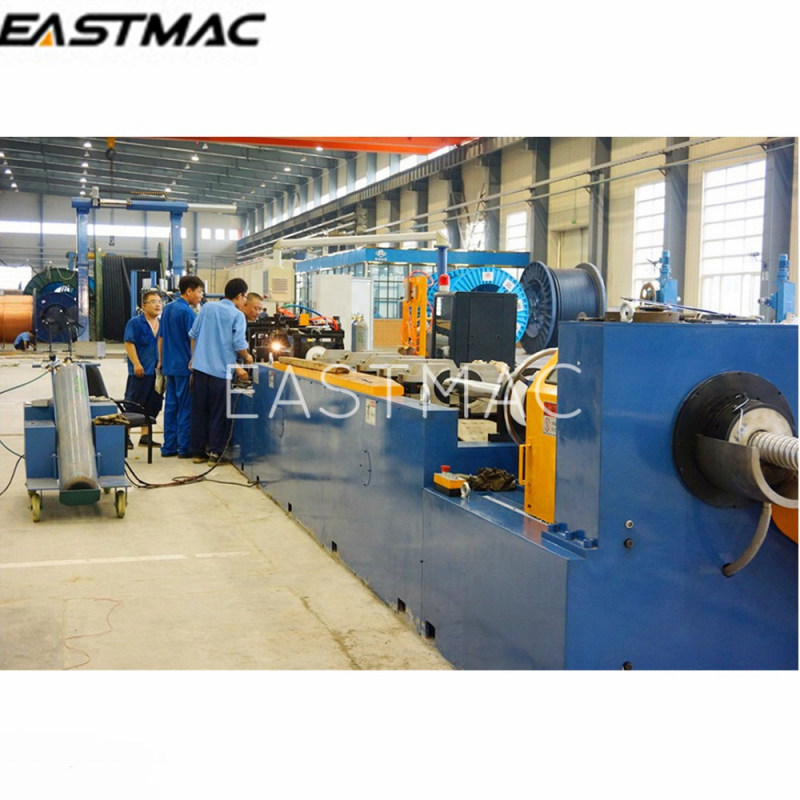

    High quality DAG45-180 Argon arc welding and corrugation line tandem with extruder for EHV cable smooth tube diameter reduce
