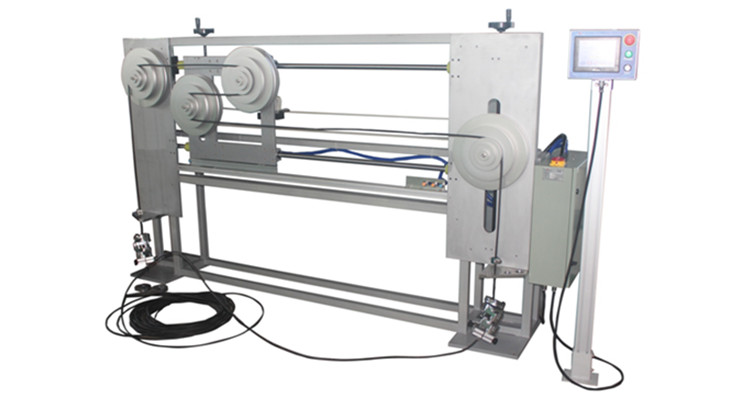

Optical Cable Flexing Testing Machines
Overview
Optical Cable Flexing Testing Machine is specially used to determine the ability of an optical fibre cable to withstand repeated flexing in service,
e.g. elevator cable.
Basic parameters:
|
Carriage stroke |
mm |
1000 |
|
Max. impact cycles |
Cycles |
1-9999 |
|
Speed setting range |
mm/min |
0-350 |
|
Diameter of pulley |
mm |
50/100/150/250/350 |
|
Mass of weights |
kg |
0.5, 1, 2, 3, 6 |
|
|
||
|
Dimensions (L*W*H) |
mm |
3100*800*1600 |
|
Weight |
kg |
1000 |
|
Power |
|
Single-phase, line to line 220Vac, 50-60Hz, 0.8kW. |
