WPT-1000
Optical Cable Water Penetration Tester
Overview

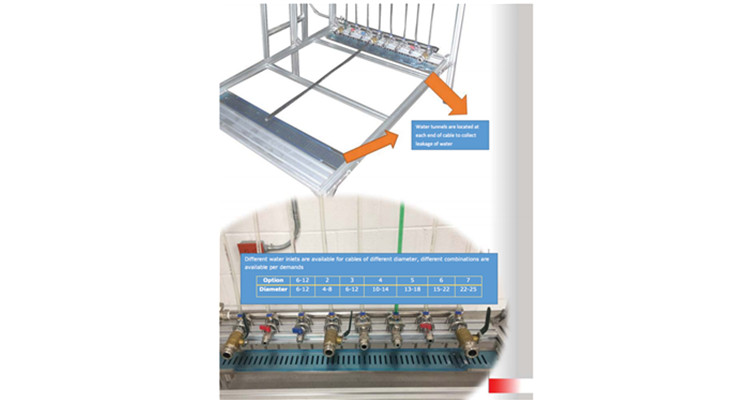

WPT-1000 Optical Fiber Cable Water Penetration Tester is to determine the ability of a cable to block water migration along a
specified length. Compliance shall be checked on samples of cable using one of the two following methods (F5A or F5B). Method F5A
tests for water migration between the outer interstices of the optical core and the outer sheath, whereas method F5B tests for water
migration over the entire cross-section designed to be water- blocked.
Main technical parameters:
|
Test Method |
|
F5B; F5A upon request |
|
Minimum Diameter of Outlet |
mm |
5.4 |
|
Maximum Diameter of Outlet |
mm |
20.6 |
|
Quantity of Outlet |
|
8 |
|
Water suppler inlet connector |
|
DN15 |
|
Power for timer |
|
1P, 220Vac, 60Hz, 10W |
|
Painting color |
RAL |
9006 |
