Application:

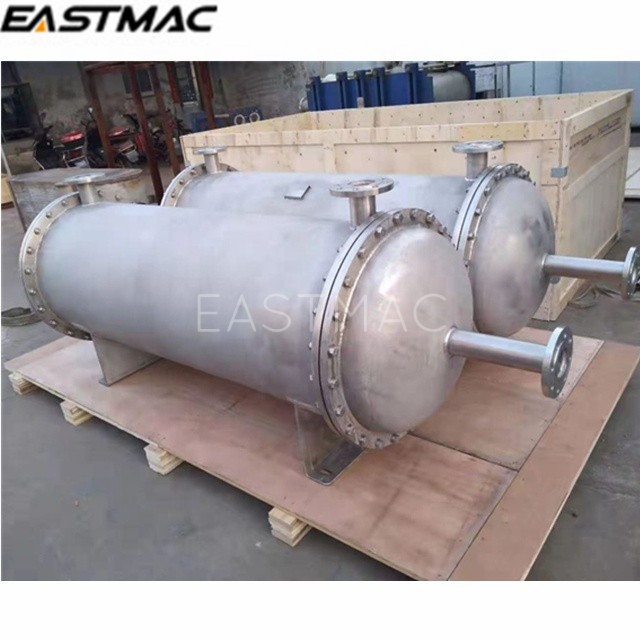

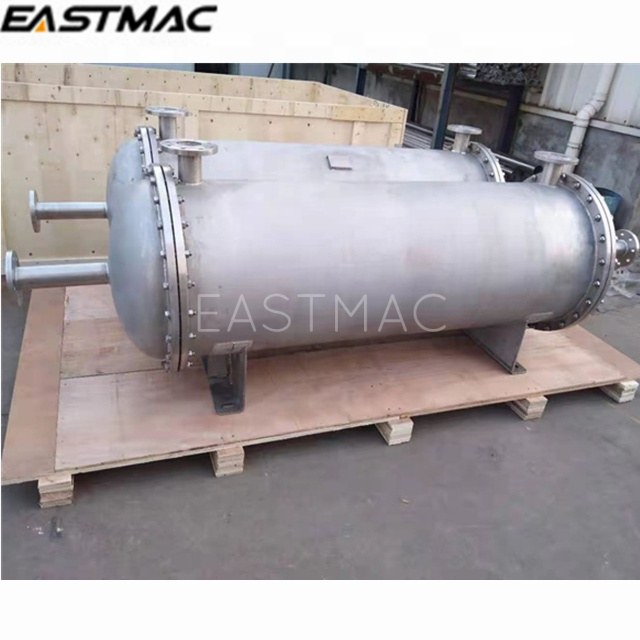

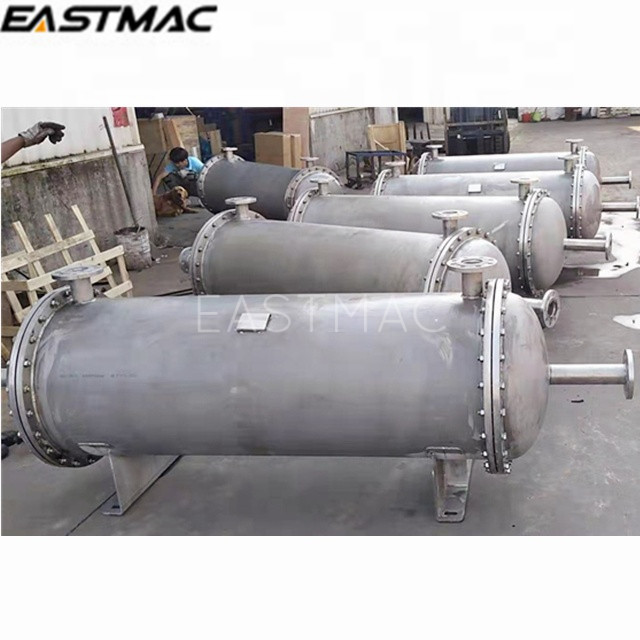

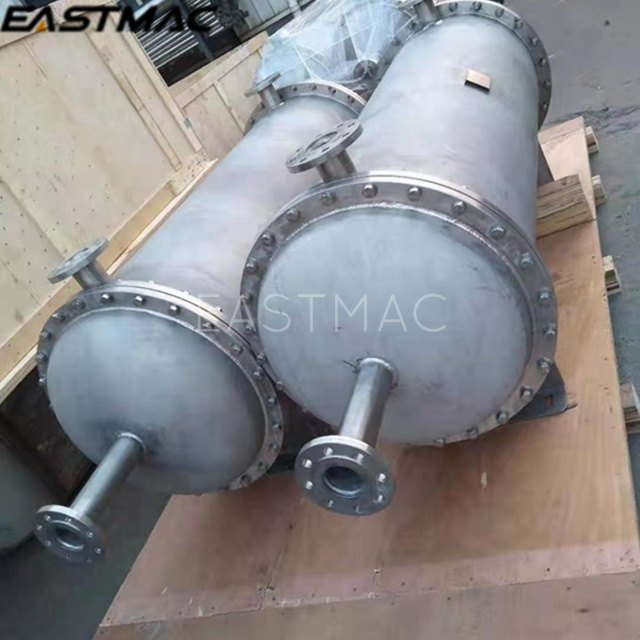

Shell-and-tube heat exchangers are also called column-and-tube heat exchangers. It is a partition heat exchanger with the wall surface of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger has a simple structure and reliable operation.It consists of shell, heat transfer tube bundle, tube sheet, baffle plate (baffle plate) and tube box.
Features:
Fixed tube-plate heat exchanger The tube-sheets at both ends of the tube bundle are integrated with the shell. The structure is simple, but it is only suitable for heat exchange operations when the temperature difference between the hot and cold fluid is not large and the shell side does not require mechanical cleaning.
Main Technical Data:
DNmm |
PN Mpa |
Max.heat exchange area(m²)/Heat exchange tube length(mm) |
||||
1500 |
2000 |
3000 |
4500 |
6000 |
||
159 |
0.6-6.4 |
1.2 |
1.6 |
2.5 |
|
|
219 |
2.7 |
3.7 |
5.7 |
|
|
|
273 |
4.2 |
5.7 |
8.7 |
13.1 |
17.6 |
|
325 |
6.3 |
8.5 |
13 |
19.7 |
26.5 |
|
400 |
10.8 |
14.6 |
22.3 |
33.8 |
45.4 |
|
500 |
|
26 |
39.6 |
60.1 |
80.6 |
