Wire and Cable Armoring line

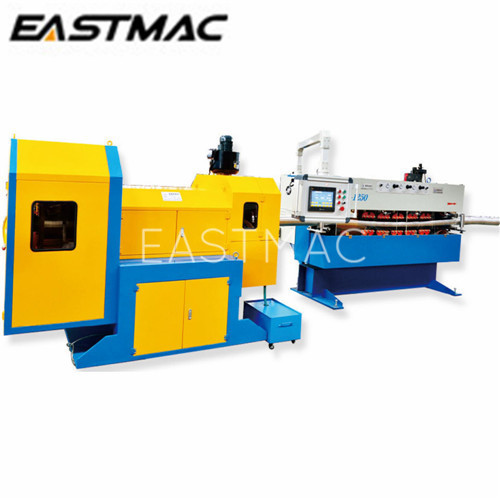

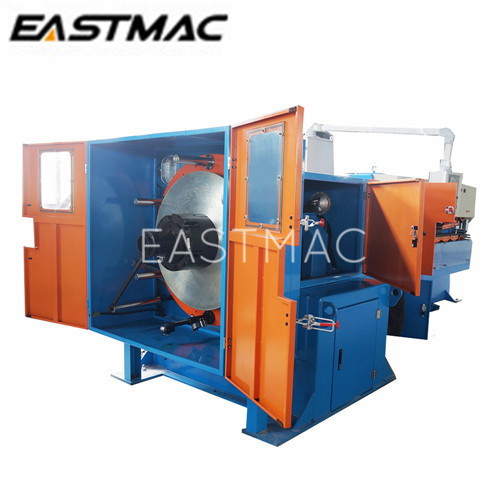

High speed continuous cable interlock armoring machine for Submersible oil pump cable and Al alloy cable

Item No.: LSKZ-100
Cable Interlock Armoring Machine is used for interlocking the round cable, AL alloy cable, flat submersible oil pump cable and fire-proof cable.
Quantity
-
+
Description
Description
Product Description
Application:

Cable Interlock Armoring Machine is used for interlocking the round cable, AL alloy cable, flat submersible oil pump cable and fire-proof cable.



Feature:

1. Adopts Siemens control system, follows the international IEC standard, and supplies the perfect electrical solutions.

2. Quality management, processing and technology all follow the export standards, to provide high quality machines.

3. We focus on details, loading and unloading part, we use hard AL alloy to make sure the tape pad is on the centering line.

high speed continuous cable interlock armoring machine for Submersible oil pump cable and Al alloy cable



Products produced by Interlock Armoring Machine:

high speed continuous cable interlock armoring machine for Submersible oil pump cable and Al alloy cable



Main technical data:

Type

Rotation speed
(rpm)

Diameter
(mm)

Tape material

Tape size
(Width x Thickness)

Motor
(KW)

Capstan motor
(KW)

Center height
(mm)

LSKZ-50

1200

6-45

Al alloy, Galvanized steel, stainless steel, copper

(9.5, 12.7) x (0.5, 0.65)

22

1.0

1000

LSKZ-100

800

10-95

(9.5, 12.7, 19, 25.4) x (0.5, 0.65)

22

1.5

1000

LSKZ-130

800

10-125

22

1.5

1000



Main Parts:

1. Pay off

2. Al tape accumulator

3. Armoring main machine

4. Caterpillar

5. Take up with traverse

6. Rewinder

7. Electric controlling cabinet

high speed continuous cable interlock armoring machine for Submersible oil pump cable and Al alloy cablehigh speed continuous cable interlock armoring machine for Submersible oil pump cable and Al alloy cable
