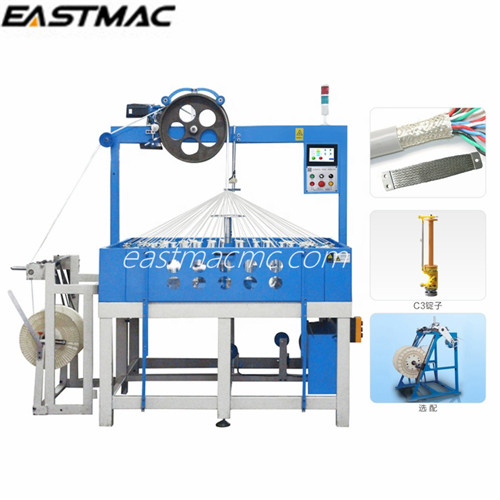

High speed full automatically horizontal wire braiding machine for cable shielding with doubling machine

Item No.: 16B, 24B
Wire braiding machine is mainly used for braiding shielding layer for wire and cable.
Description
Description
Product Description

Application:

Wire braiding machine is mainly used for braiding shielding layer for wire and cable.

Feature:

To extend the service life,imported materials are used for all the key components in these machines.They are equipped with independent take-up and pay-off motor up to 800mm reel. With the patented anti oil throwing construction,braided products are guaranteed to be clean without oil pollution. Electrical components of the control system are selected from international famous brands which make the system more stable and reliable.

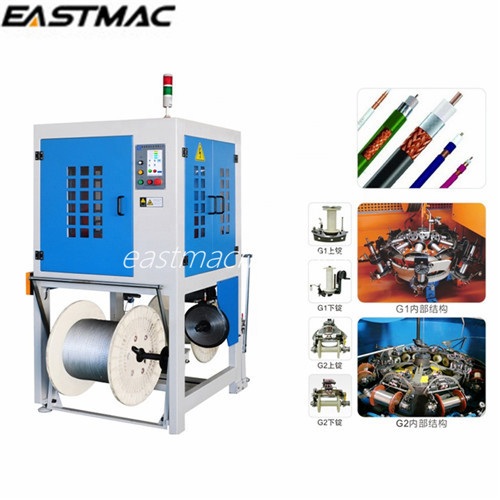

High speed full automatically horizontal wire braiding machine for cable shielding with doubling machine



High speed full automatically horizontal wire braiding machine for cable shielding with doubling machine



Main technical data:

Model EM-16B01D EM-24B01D EM-32B01D EM-48B01D
Number of heads 1 1 1 1
Number of spindles 16 24 32 48
Horngear diameter 110mm 110mm 110mm 110mm
Horngear speed 320rpm 320rpm 320rpm 320rpm
Motor power 0.55kw 380v 0.75kw 380v 1.1kw 380v 1.5kw 380v
Dimensions(mm) 1000*1500*1950 1100*1600*1950 1200*1800*1950 1500*2000*1950
Braiding OD ≤12mm ≤20mm ≤25mm ≤30mm
