Application:

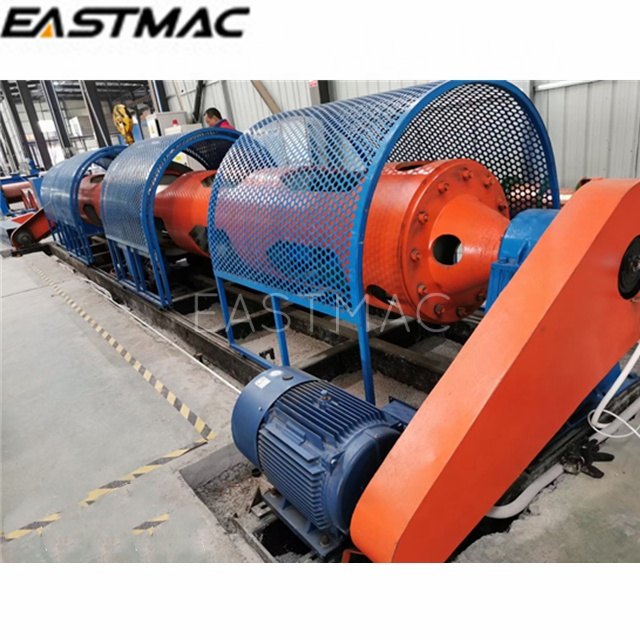

High speed tubular type stranding machine is used for stranding steel wire, aluminum wires and copper wire as well as cabling the control cables.
Feature:
1 The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.
2 Bobbin is clamped by disc springs and released by pneumatic device..
3 Wire-break and emergent stops provided for all the line
4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.
Products produced by Tubular Type Stranding machine:
Main technical data:
| Bobbin size(mm) | Max. rotation speed (rpm) | Wire dia. (mm) | |||||
| 6B | 12B | 18B | 24B | Aluminum | Copper | Steel | |
| 200 | 1200 | 900 | 1.0~2.5 | 0.2~1.5 | 0.2~0.8 | ||
| 315 | 900 | 800 | 1.0~2.5 | 0.5~1.8 | 0.3~1.0 | ||
| 400 | 900 | 800 | 550 | 1.0~2.5 | 1.4~4.0 | 0.6~3.0 | |
| 500 | 800 | 600 | 450 | 350 | 1.3~5.0 | 1.8~5.0 | 1.3~3.5 |
| 560 | 700 | 500 | 400 | 300 | 1.3~5.0 | 1.8~5.0 | 1.3~3.5 |
| 630 | 700 | 500 | 330 | 260 | 1.3~5.0 | 2.0~6.0 | 1.3~3.5 |
| 710 | 400 | 300 | 1.3~5.0 | 2.0~6.0 | 1.3~3.5 | ||
| 760 | 350 | 1.3~5.0 | 2.0~6.0 | 1.3~3.5 | |||
