AC Series Resonance PD Free Test System
Application:
AC Series Resonance Test System is mainly used in power industry ,power transformer industry ,HVPT,HV switchgear,ect. The test item includes AC voltage test ,PD test,and cable long duration test.
System Main Technical Data:
|
N/M |
item |
parameter |
|
1 |
Rated voltage |
100KV-1500KV(and above) |
|
2 |
Rated energy |
300KVA-30000KVA( and above) |
|
3 |
Noise |
≤75dB(2 meters away from equipment) |
|
4 |
Q value |
Q≥20-100 |
|
5 |
PD |
80% voltage PD ≤2pc |
|
6 |
Load |
Under rated capacity,1 hour on,1 hour off,3-6 times per day;under half capacity,continuous operation(customer can requie longer operation) |
System Compoments:
YYKTY-Series HV resonance reactor 1 set
DSIT- series double shielded isolation transformer 1set

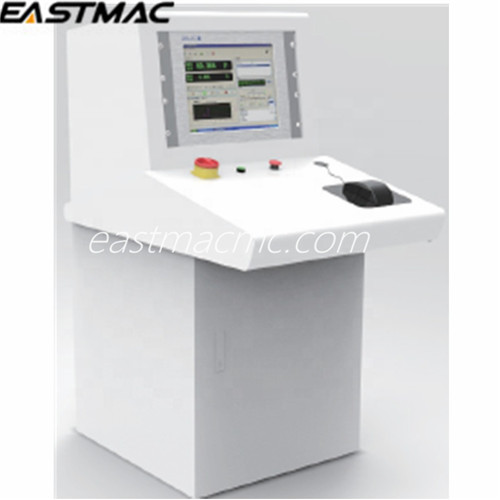

Digital control 1 set
TDGZ-contact regulator 1set
JFD-PD digital detector 1set
HVF-series HV filter 1set
EXC-exciter 1set
LVF-LV filter 1set
CIC-calibration inject capacitor 1set
JTKZ-5 digital inject capacitor 1set

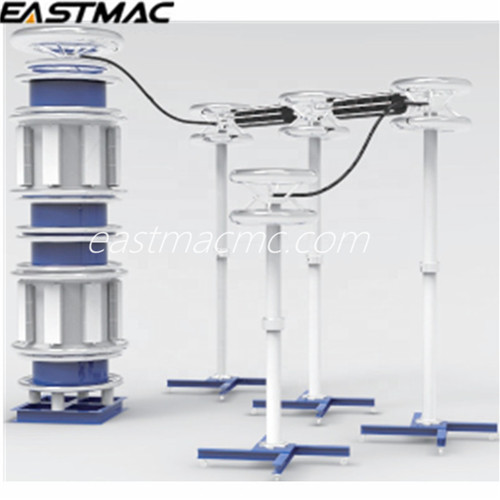

HV Resonance reactor
At present we have two structures of HV resonance reactor
YKTK- tank type voltage 5KV-350KV,capacity 100KAV-15000KAV
YKTYC-epoxy barrel type voltage 150KV-1500KVA,capacity 100KVA-30000KVA
