Application:

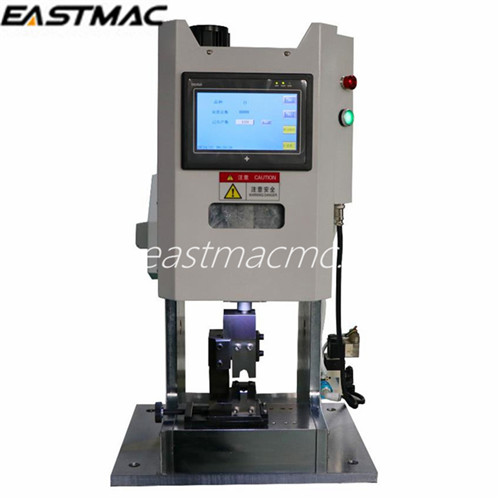

This machine is used for crimping wire terminal
Main Technical Data:
|
Type |
Servo type Crimping machine HW-10T |
|
Wire dia. |
10-120square mm |
|
Pressure |
300KN |
|
Travel |
40mm |
|
Crimping width |
12.5mm customerized |
|
Weight |
290kg |
|
Voltage |
220v50Hz |
|
Power |
2300w |
Product overview:
1. The machine is mainly for crimping large square tubular terminals;
2. Industrial-grade control chip with high-precision servo drive enables the machine to run stably;
3. PLC control system, instantaneously changing the crimping range of different terminals and the operation mode of touch screen;
4. 10-120mm Clamping of closed-mouth terminal does not need to change the tool, and the knife edge size can be changed instantly;
5, Six-direction mold can press six-direction, M mold can press opening, four-point mold can press four, etc.
6. Suitable for crimping operations of non-standardized terminals or crimping terminals;
7. No mold change, high accuracy;
8. The pressure connector can be fully opened, suitable for the middle connection or large square terminals;
9. The position of the actual square of the wire can be adjusted;
10. Compact structure, space saving, low working noise.
