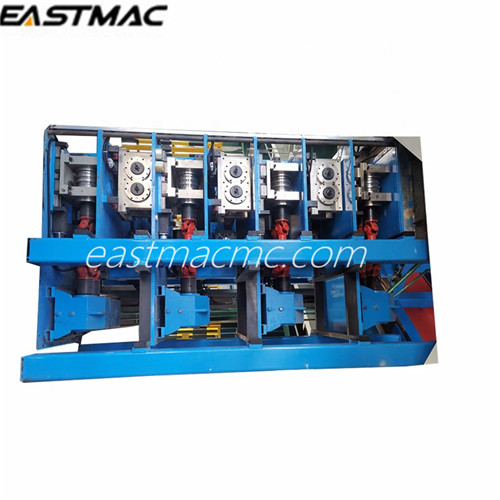

Application:
Mineral insulated cable copper strip longitudinal forming and welding line is an automatic production line specially designed for the production of BTTZ fire cable. It absorbs the successful experience of foreign equipment, combines with the progress of modern technology and our company's years of experience in the development of tiG arc welding pipe equipment, and can meet the production needs of large length of BTTZ fire cable.
Products produced by Mineral insulated cable copper strip longitudinal forming and welding line:
Main technical data:
OD of copper tube |
Φ20~35mm |
Copper strip thickness |
0.85~1.5 mm |
OD of finished cable |
Φ5.9~Φ30mm (BTTZ 750V,1core 62~4002 , 2cores, 3cores, 4cores and 5cores, 1.52~252 |
Max. welding current |
300A |
Welding speed |
1~3m/min |
Take-up speed |
2m/min~15m/min |
Installation capacity |
1000KVA |
Working capacity |
300KVA |
Water consumption |
8T/h |
Line Dimension |
15m H * 70m L * 5m W |
Main Parts:
No. |
Parts |
QTY |
1 |
Copper rod pay-off |
6sets |
1 |
Copper tape pay-off |
1set |
2 |
Copper tape connector |
1set |
3 |
Copper tape cleaner |
1set |
4 |
MgO feeder |
1set |
5 |
Copper tape forming device |
1set |
6 |
Welding system |
1set |
7 |
Vertical rolling mill |
1set |
8 |
1# Annealer, cooling trough and direction guiding roller |
1set |
9 |
1# horizontal rolling mill |
1set |
10 |
2# horizontal rolling mill |
1set |
11 |
2# Annealer |
1set |
12 |
Take-up |
1set |
13 |
Electric control system |
1set |
14 |
Rolling dies |
1set |
