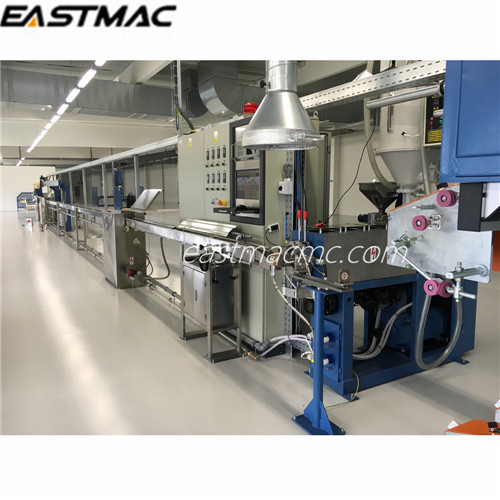

Application:
Simplex and Duplex sheathing line is mainly used to produce 2 core indoor optical cable, Include: simplex cable, Duplex cable and so on.
Products produced by Simplex and Duplex Sheathing line:
Main technical data:
Tight optic fiber cable dia. |
0.6mm, 0.9mm |
Cable diameter |
2.0mm, 3.0mm |
Line speed |
150m/min |
Operation speed |
100m/min(simplex cable,PVC) |
|
80m/min (duplex cable, PVC) |
Size of tight fiber pay-off reel |
PN400mm~PN630mm |
Size of optical fiber pay-off reel |
PN 235 |
Size of take-up reel |
PN400~PN630 |
0.5N-1.5N±0.05N |
|
Pay-off tension of tight fiber |
0.4N-1.5N±0.05N |
Take-up tension |
3N-20N |
Aramid cops |
10 |
Aramid pay-off tension |
0.5N-3N±0.05N(adjustable) |
Extra-attenuation |
≤0.02dB/Km |
Line Dimension |
28m×3.5m×3.5m(L×W×H) |
Line operation direction |
appointed by consumer |
Line color |
appointed by consumer |
Power supply |
45kw |
Line centre height |
1000mm |
Main Parts:
1. Tight-fiber and optical fiber pay-off frame
2. Cops aramid pay-off
3. SJ45×25 extruder and one head (With feed, compound dryer device and master batch)
4 4m hot water trough and water tank
5 12m cooling water trough and refrigerating system
6 Blow dryer
7 Diameter control system
8 Lump&neck detector
9 Φ630 single wheel capstan
10 Double reel take-up(cumulating:100m)
11 Electric control system
Packaging & Shipping
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Our Services
Warranty Period - 12Months:
Complete After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
During special period, our team can provide powerful Remote Commissioning.
Company Information
FAQ
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
