Application:

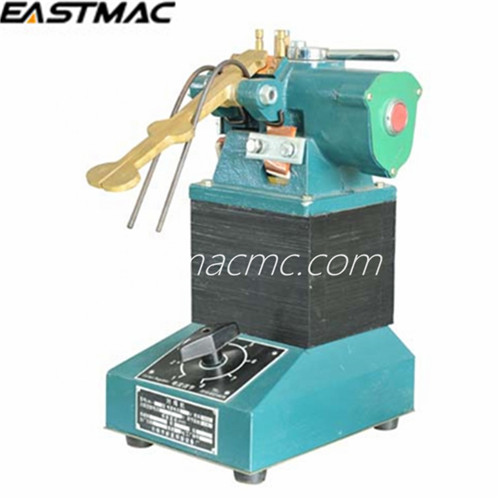

UN Series butt-welders are widely used in the butt welding with the materials such as the steel, iron, copper and aluminum in the industries such as electric wire, drawing, welding, filler metal , etc.
Main Technical Data:
|
Model |
Rated Capacity |
Input Voltage |
Input Current |
Duty Cycle |
Welding Dia (mm) |
||
|
Mild Steel |
Al |
Cu |
|||||
|
UN-1 |
1 |
220 |
4.5 |
8 |
0.5~2.0 |
0.5~1.5 |
0.5~1.2 |
|
UN-3 |
3 |
220 |
13.6 |
15 |
1.0~4.0 |
1.0~3.0 |
1.0~2.5 |
|
UN-5 |
5 |
380 |
13.2 |
15 |
1.5~6.0 |
1.5~5.0 |
1.5~4.0 |
|
UN-25 |
25 |
380 |
65.8 |
20 |
6~12 |
4~10 |
4~8 |
|
UN-30 |
30 |
380 |
78.9 |
20 |
6~16 |
5~12 |
4~10 |
|
UN-50 |
50 |
380 |
131.6 |
20 |
8~18 |
6~14 |
5~12 |
|
UN-75 |
75 |
380 |
197.4 |
20 |
8~25 |
8~20 |
6~16 |
|
UN-100 |
100 |
380 |
263.2 |
20 |
10~35 |
10~22 |
8~20 |
|
UN-160 |
160 |
380 |
421.1 |
20 |
12~40 |
12~28 |
10~25 |
