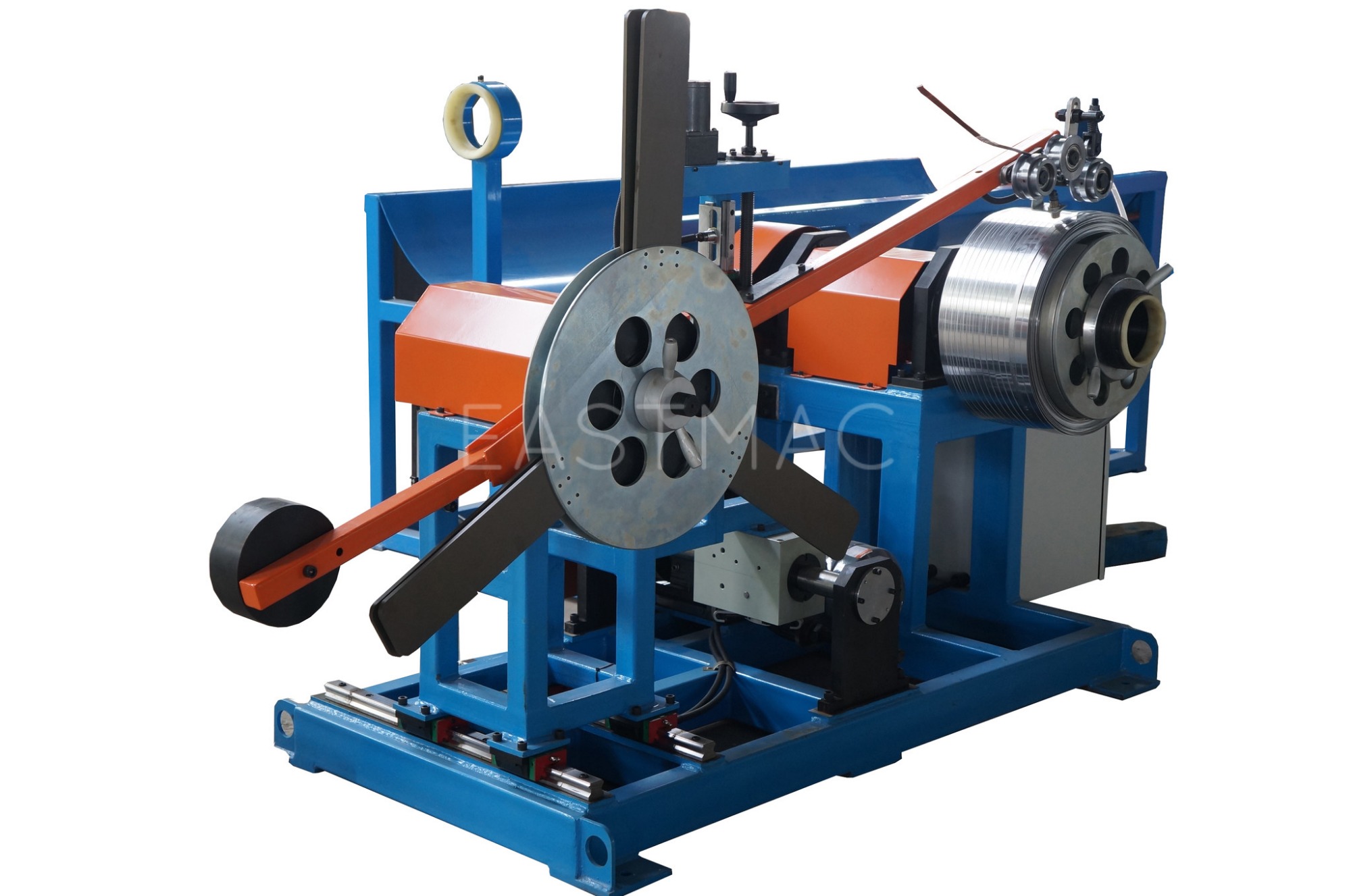

Tape rewinding machine

Item No.: 00102
It is used for For fiber cable cutting, the fiber cable wrapped around the cylinder is unrolled and cut into segments according to the set length and quantity, and then rewound into spools.
Quantity
-
+
Description
Description
Product Description

Application:

The machine uses tape pay off to move to traverse tape,tape traversing structure uses motor to control automatically, making tape traversing close to surface tape traversing of tape take up. Tape travesing is good without tape overlap.



Main technical data:

1

 Metal tape pay off size (OD x ID x WIDTH)

 Ф1000×Ф300×(9.5mm~25.4mm)mm



2

After rewinding coil size (OD x ID x WIDTH)



 Ф900×Ф380 ×203mm



3

 Rewinding max speed



150m/min



4

Traverse pitch(adjustable)



 6~25.4mm



5

Tape Take up motor



3kw(AC)

6

Coil max weight



1,000kg



7

Rewinding device including







passive tape pay off, take up with traverse, electrical control etc.



8

Pay off tension mechanical friction control



adjust by manual.
