Taping and Wrapping machine

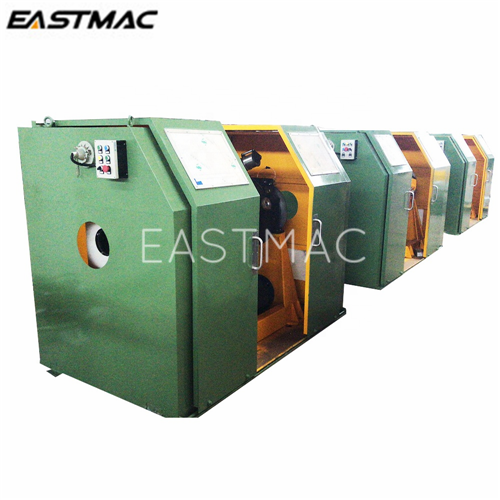

Taping Machine

Item No.: eccentric type
Eccentric type wire and cable metallic taping machine is mainly used for wrapping steel tape on the cable core to be cable armoring layer.
Quantity
-
+
Description
Description
High speed eccentric tangential type non-metallic taping machine for wrapping tapes on cable

Application:

Eccentric type wire and cable metallic taping machine is mainly used for wrapping steel tape on the cable core to be cable armoring layer.

 high speed eccentric type wire and cable metallic taping machine for MV HV power cable



Main technical data:

Max. OD of taping wire

100            mm

ID of hollow shaft

120           mm

Taping pad size (O.D.× I.D.×W.)

800 x 230mm x (15~80mm)

Taping width

800 x 230mm x (15~80mm)

Thickness of steel tape

0.2~0.8mm

Max. rotating speed of taping head

300r/min

Taping material

Steel tape

Taping tension

2.5~40 KG

The structure of taping head

2B, Eccentric

Driving motor

18.5KW (AC motor with inverter)

Pitch changing

Step-less

With the function of right and left rotating and stopping work.

With the function of stopping at tape-finish.



high speed eccentric type wire and cable metallic taping machine for MV HV power cable
