Application

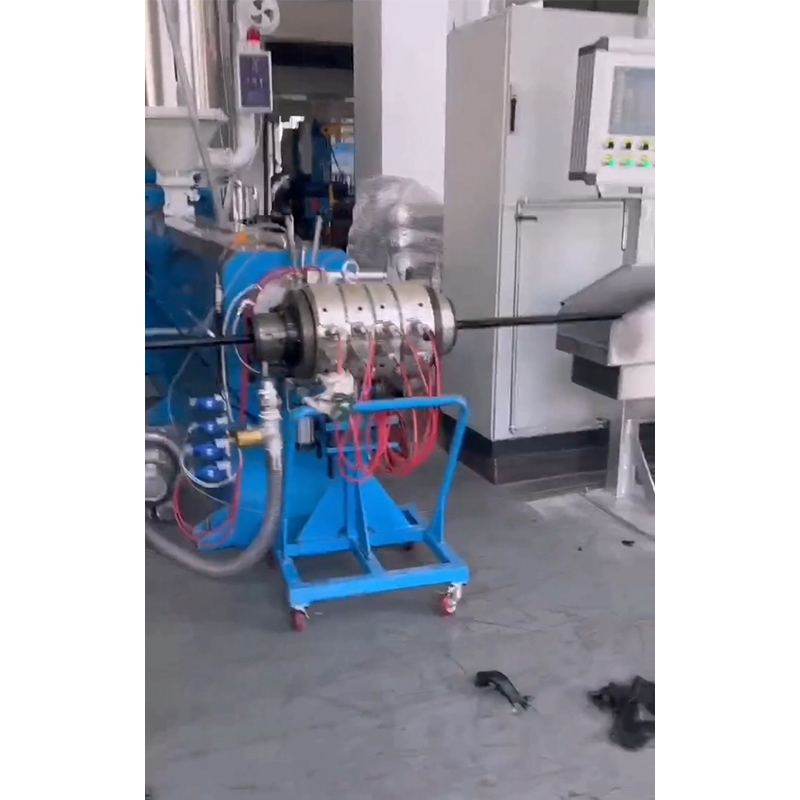

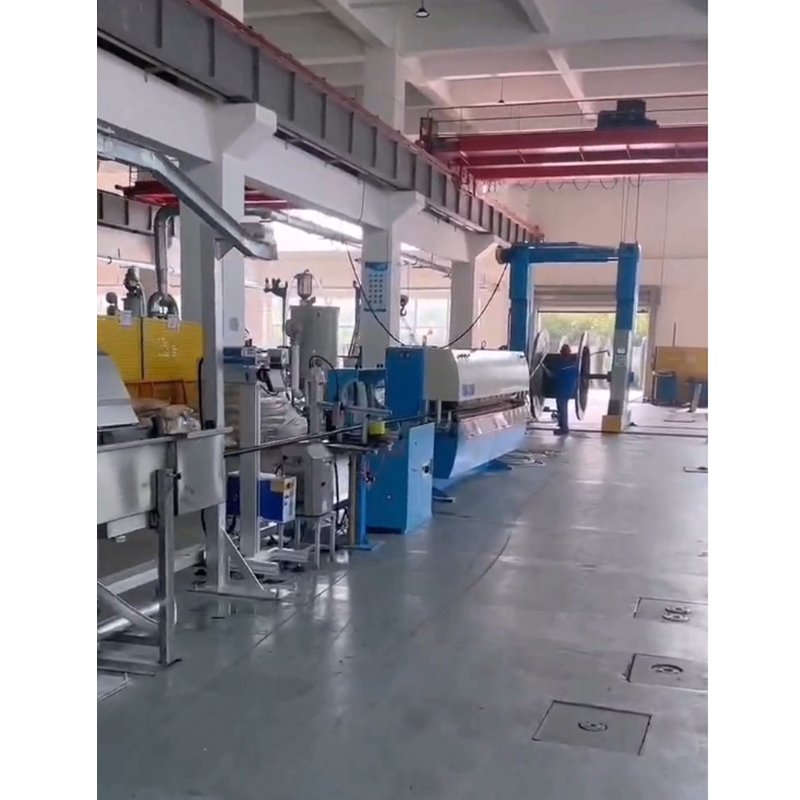

This production line is suitable for the extrusion processing of raw materials such as PVC, XLPE, LSHF and Nylon, and can complete the tandem extrusion covering of the cable filling layer and outer sheath layer.
|
Screw diameter |
2.1 Φ100mm,Φ120mm |
|
Screw L/D |
25：1 |
|
Max output capacity |
|
|
100extruder |
450kg/h (PVC, standard test cross-head) |
|
120extruder |
600kg/h (PVC, standard test cross-head) |
|
45extruder |
50kg/h(PVC, standard test cross-head) |
|
Cable core diameter before covering |
Φ10-Φ65mm |
|
Cable diameter after covering |
Φ15-Φ85mm |
|
Max pulling force |
20000N |
|
Max linear speed |
150m/min |
|
Water trough length |
4+4+28m |
