100+45 Extrusion Line Used for fiber optic cables

No

Item

Unit

Qty

Specification

1.

Φ2200Portal type motorized pay-off stand

(Upper-beam)

Sets

1

Pay-off bobbin:Φ1600-Φ2200;

11kW AC variable frequency motor;

Siemens G120 series speed regulation device;

Max linear speed: 150m/min.

2.

Pay-off wire guiding stand

Set

1

3.

TQDV-2000 front pneumatic caterpillar

Set

1

15kW AC variable frequency motor;

Siemens G120 series inverter;

Applicable wire diameter: φ6～φ100mm;

Max linear speed: 150m/min.

4.

Wire supporting strand

Set

1

5.

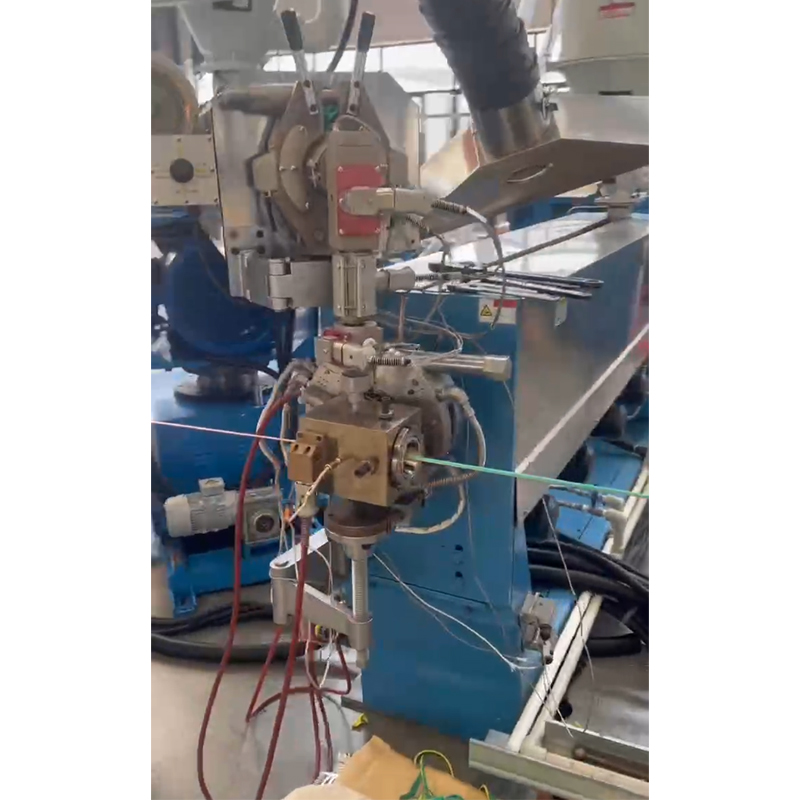

SJ-100×25 high efficiency extruder

Set

1

110kW AC variable frequency motor,;

Siemens G120 series inverter;

Digital temperature controller;

high-efficiency BM screw;

cast aluminum heater;

Air-cooled barrel;

The cross-head and the barrel are connected by Haff;

Rotating speed:8-80r/min

6.

Φ100 LSHF Screw

Pc

1

For extrusion of LSHF material .

7.

Φ100 Nylon Screw

Pc

1

For extrusion of Nylon material
