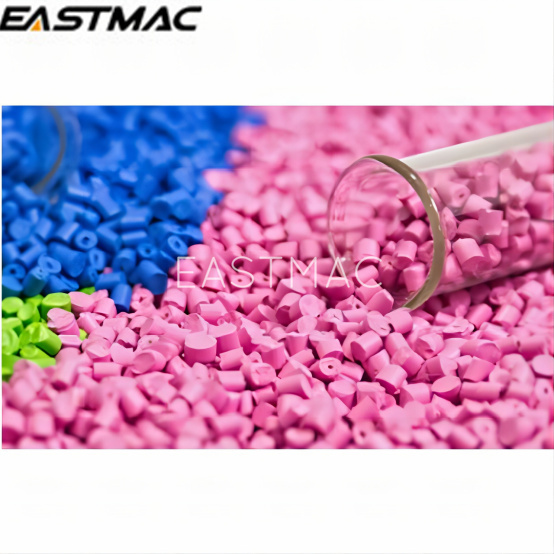

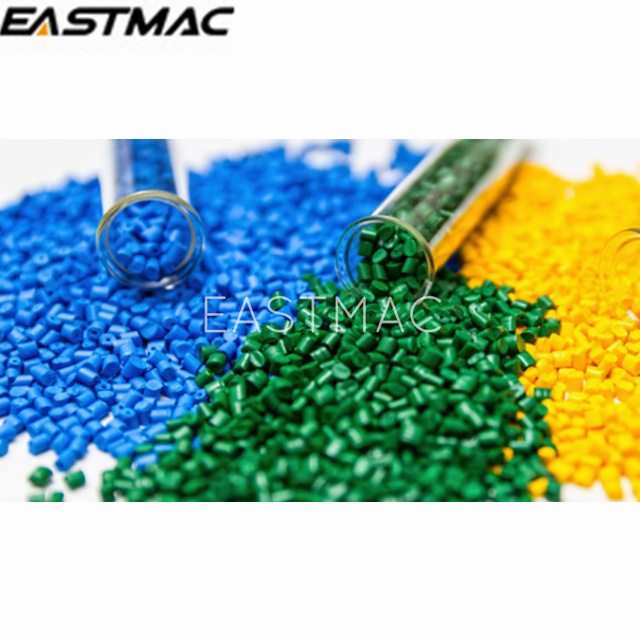

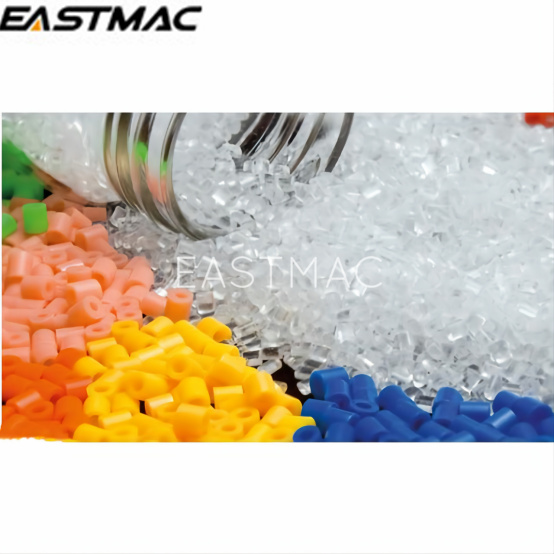

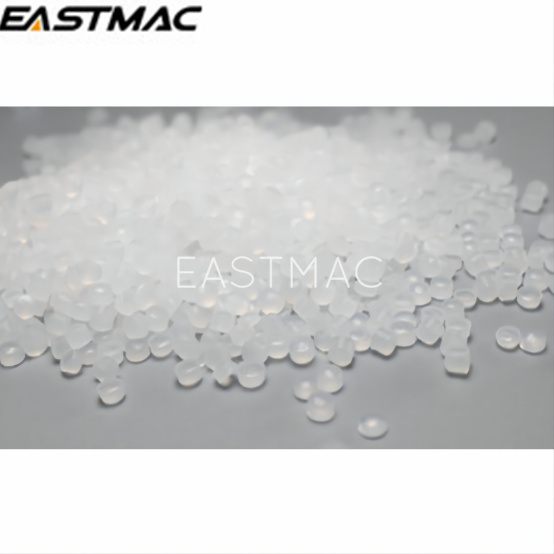

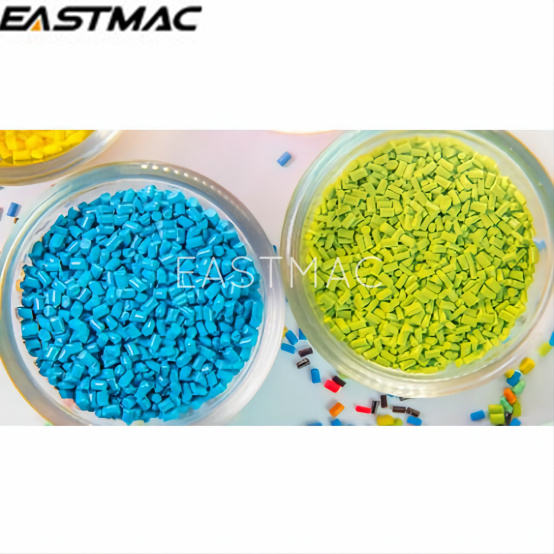

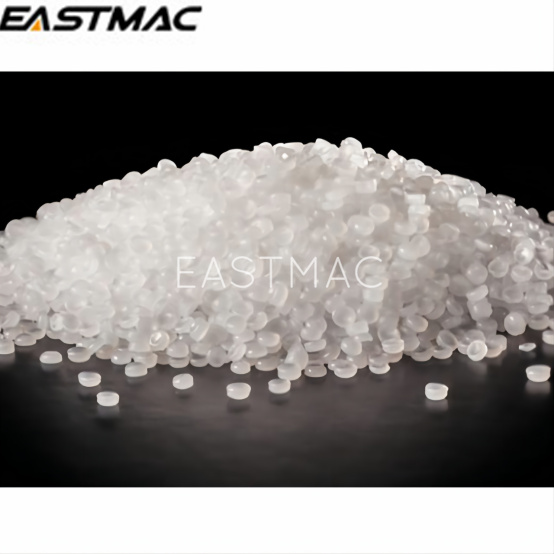

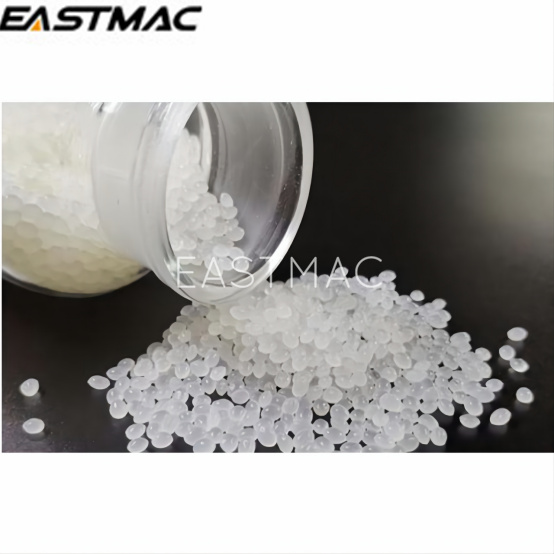

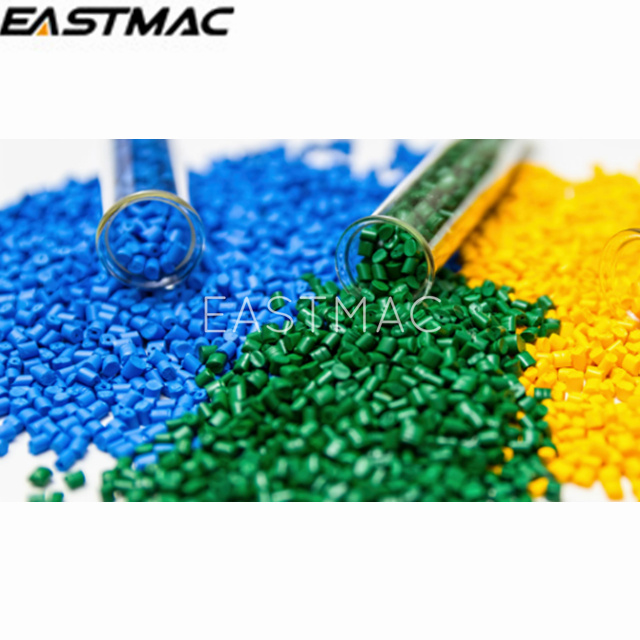

10KV One-step Silane Cross-linkable Overhead Insulation Compound Silane XLPE Insulation Compounds

Item No.: 00635
SEJ90-1-KK (10) is one-step silane cross-linkable polyethylene overhead insulation compound for medium-low voltage cables. It is a kind of insulations for medium-low voltage overhead cables through squeeze tube mold production process.
  • ModelSEJ90-1-KK(10)
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai China
  • Supply Ability1000 Tons Per Month
  • Payment TermsT/T, L/C
  • More Less
    Description
    Description

    Application:

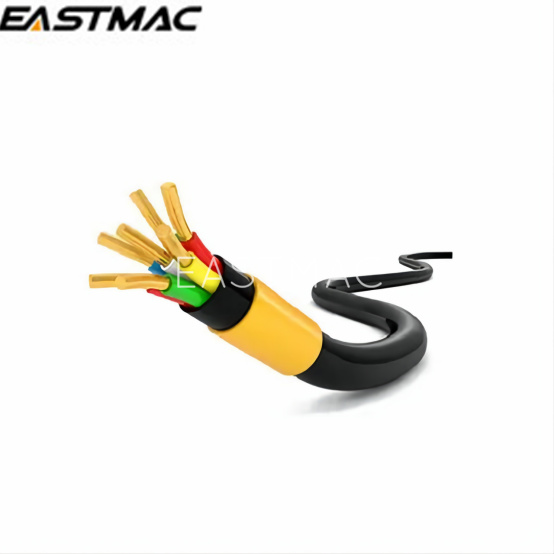

    SEJ90-1-KK (10) is one-step silane cross-linkable polyethylene overhead insulation compound for medium-low voltage cables. It is a kind of

    insulations for medium-low voltage overhead cables through squeeze tube mold production process. Cables working voltage is 10KV and

    below, the highest working temperature is 90℃.

    Processing Indicator
    Recommend to process with the PE extruder.



    Main technical data:

    Model



    Machine Barrel Temperature

    Molding Temprature



    SEJ90-1-KK(10)

    160-200℃



    215-220℃





    Item



    Unit



    Technical

    requirements



    Density



    g/cm3

    0.922±0.005

    Tensile Strength



    MPa

    ≥13.0

    Elongation at Break



    %

    ≥300

    Brittle Temperature with Low Temperature





    -76

    ≤15/30

    20 Volume Resistivity



    Ω·m

    ≥1.0×1014

    20 Dielectric Strength,50Hz



    MV/m

    ≥25.0

    20 Dielectric Constant,50Hz



    ----

    ≤2.35



    Air Aging Condition

    135±2×168h

    Tensile Strength Variation After

    Aging





    %



    ±20

    Elongation Variation After Aging

    %

    ±20



    Artificial  Weathering Aging 0- 1008h

    Tensile Strength Variation After

    Aging





    %



    ±30

    Elongation Variation After Aging

    %

    ±30



    Artificial  Weathering Aging  504- 1008h

           Tensile Strength Variation After

            Aging





    %



                 ±30

    Elongation Variation After Aging

    %

                 ±30
