Application:

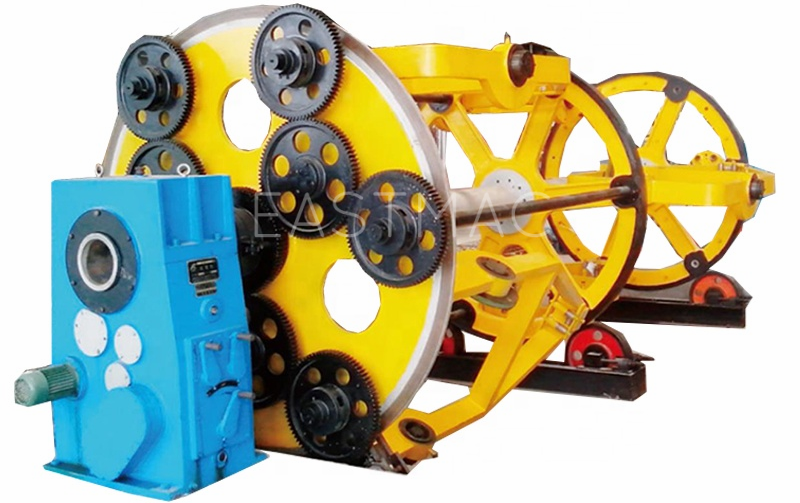

Cradle type Laying up machine is used for making PVC,PE,XLPE,RUBBER insulated power cable , tapping and amoring rubber cable, special stranded cable and so on. The core can be round or sector.
Products produced by Cradle type Laying up machine :
Main technical data of Type 1250-1+3:
|
Max. section of single wire |
185sqmm |
|
Speed of cage |
9.47 - 22.5r/min |
|
Stranding pitch |
302 - 3474mm |
|
Linear speed |
6.8 - 32.9m/min |
|
Pay-off bobbin in cage |
PN1250 |
|
Take-up bobbin |
PN1600 - PN2500 |
Main Parts:
1. Φ1250/1+3 stranding cage
2. Assemble die
3. Mechanical meter counter
4. Non-metallic taping machine
5. Metallic taping machine (40 Steel tapping head)
6. 1600Kg flat belt type haul-off system
7. Φ2500 pintle type take-up with traversing
8. Transmission system
9. Electrical control system
10. Safe fence
