CCA ACS CCS Al strip production line

2020 new type Aluminum Conklad And Conform Extrusion Machine For OPGW and ACS Wire

Item No.: 00352
1.1 Extrusion mode: Radial direction continuous extrusion by single round and single groove.

1.2 Application: Solid and hollow aluminum material, Sector conductor, aluminum tube, aluminum bus bar
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability20 sets per month
  • Payment TermsL/C,T/T
  • More Less
    Description
    Description

    Application:

    1.1 Extrusion mode: Radial direction continuous extrusion by single round and single groove.

    1.2 Application: Solid and hollow aluminum material, Sector conductor, aluminum tube, aluminum bus bar

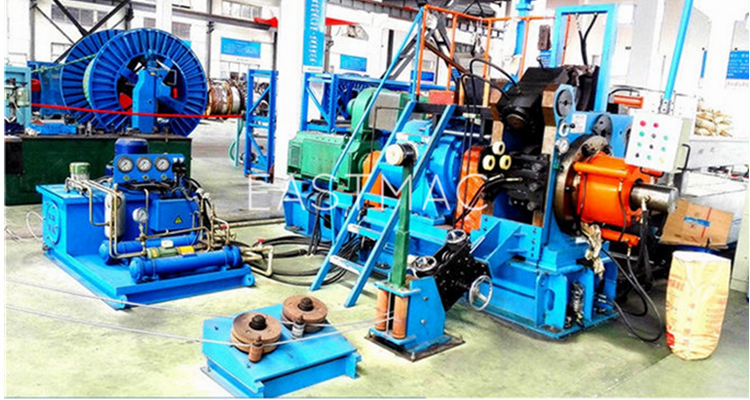

    Products produced by Aluminum Extrusion line :

    2020 new type Aluminum Conklad And Conform Extrusion Machine For OPGW and ACS Wire





    Main technical data:

    Description Model no.
    Nominal Dia. of extrusion wheel(mm) 350 400
    Inlet rod diameter(mm) 9.5 9.5
    Alu tube O.D.(mm) 65~150 70~165
    Al Tube Thickness(mm) 2~4 2~4
    Corrugating pitch(mm) 10~50 10~50
    Corrugating depth(mm) 2~8 2~8
    Extrusion wheel Rotation(rpm) 0-15 0-15
    Range of speed(m/min) 0~8 1.2-6
    Average produce efficiency(kg/h) 250~500 250-500
    Product line power(KW) 560 620



    Main Parts:

    1.    Pay off stand and guide roller

    2.    Straighter

    3.    Aluminum cleaning system ( Brush machine)

    4.    Aluminum feeding and cutting system

    5.    LJ350/200 continuous aluminum extrusion machine

    6.   LJ350/200 Products and tools cooling system

    7.   Hydraulic lubrication station

    8.   Extra HV hydraulic station

    9.   2000 portal type T/U with traversing-TOP CLAMPING (including counter)

    10.    Electrical control system

     2020 new type Aluminum Conklad And Conform Extrusion Machine For OPGW and ACS Wire
