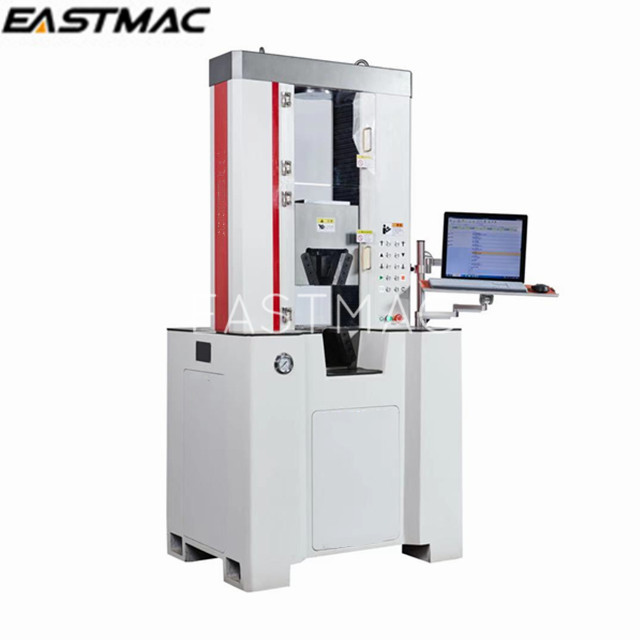

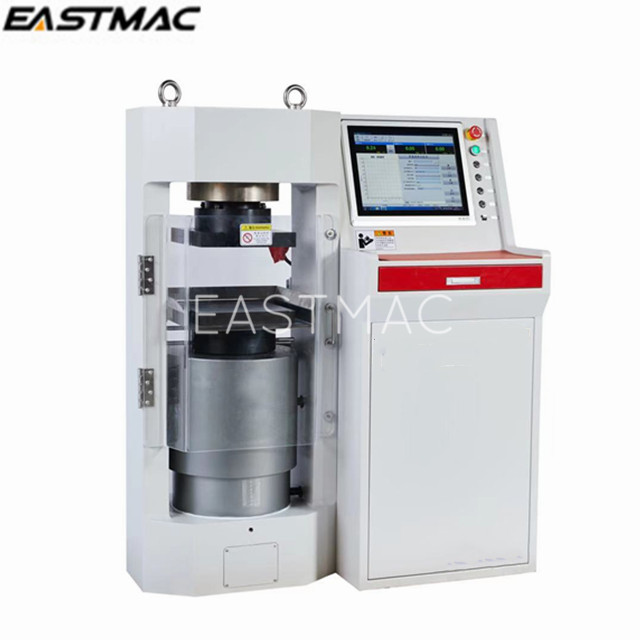

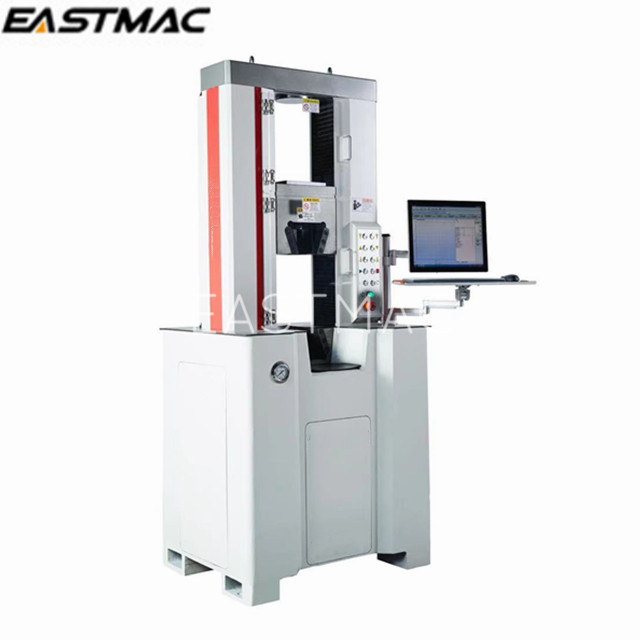

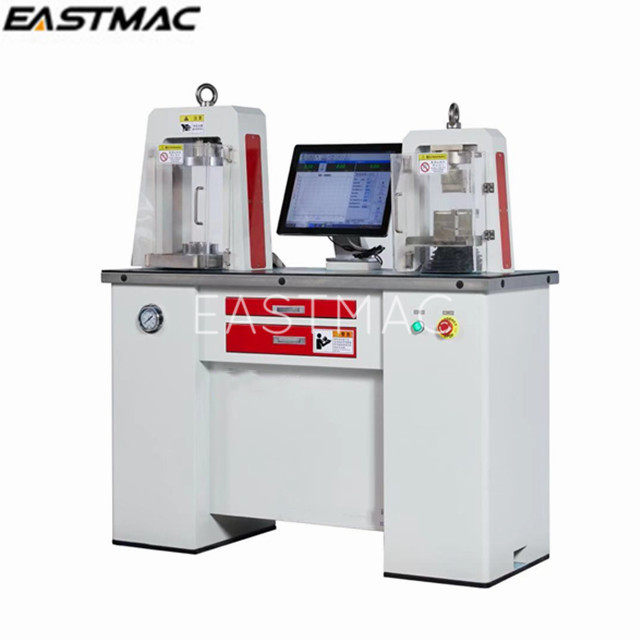

300B microcomputer controlled flexural and compressive integrated testing machine

Item No.: 00491
This testing machine is suitable for strength tests such as cement compression, mortar compression, cement bending, refractory brick bending, red brick bending resistance, etc.
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability50 sets per month
  • Payment TermsL/C, T/T, D/P
  • More Less
    Description
    Description

    YAW-300B type microcomputer controlled flexural and compressive integrated testing machine





    Application:

    This testing machine is suitable for strength tests such as cement compression, mortar compression, cement bending, refractory
    brick bending, red brick bending resistance, etc.



    Main Technical Data:

    Max compressive test force

    300kN

    Max bending test force

    10kN

    Testing accuracy level

    ±0.5%

    Compressive measuring range

    (3-300)kN

    Flexural measurement range

    (0.1-10)kN

    Compressive loading rate

    (0.2-10)kN/S

    Flexural loading rate

    (10-500)N/S

    Bearing plate diameter

    120mm

    Power supply

    AC220V±10% (50Hz)
