XLPE Insulation Compounds

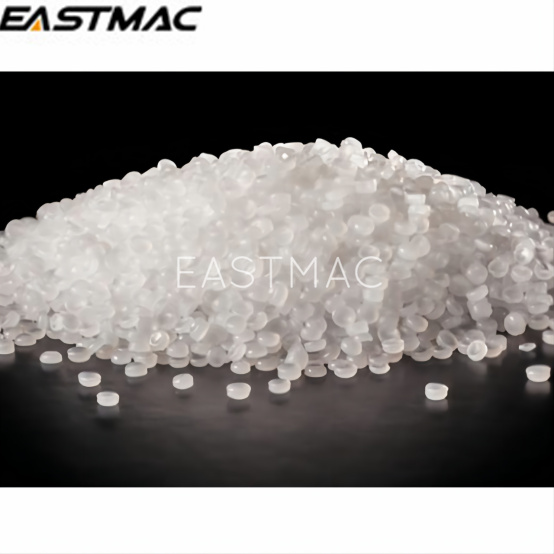

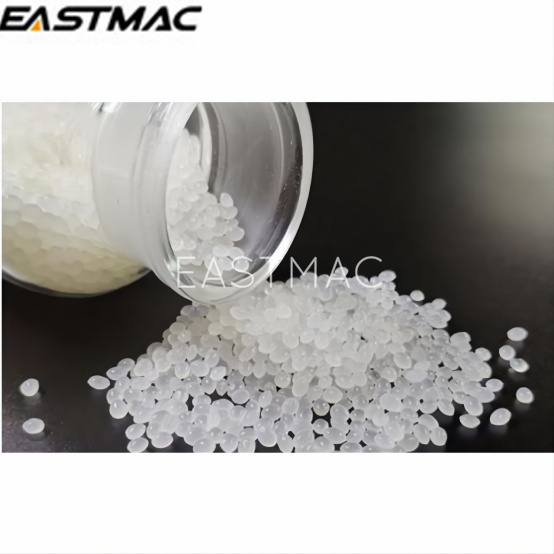

3KV One-step Silane Cross-linkable PE Overhead Insulation Compound Silane XLPE Insulation Materials

Item No.: 00636
SEJ90-1-KK(N) is one-step silane cross-linkable polyethylene insulation compound for low-voltage cables. It is a kind of insulations for medium-low voltage overhead cables through squeeze tube mold production process.
  • ModelSEJ90-1-KK(N)
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai China
  • Supply Ability1000 Tons Per Month
  • Payment TermsT/T, L/C
  • More Less
    Description
    Description

    Application:

    SEJ90-1-KK(N) is one-step silane cross-linkable polyethylene insulation compound for low-voltage cables. It is a kind of insulations for medium-low

    voltage overhead cables through squeeze tube mold production process. Cables working voltage is 3KV and below, the highest working temperature

    is 90℃.

    Processing Indicator
    Recommend to process with the PE extruder.



    Main technical data:

    Model



    Machine Barrel Temperature

    Molding Temprature



    SEJ90-1-KK(N)

    160-200℃



    215-220℃





    Item



    Unit



    Technical

    requirements

    Density



    g/cm3

    0.922±0.005

    Tensile Strength



    MPa

    ≥13.5

    Elongation at Break



    %

    ≥300

    Brittle Temperature with Low Temperature





    -76

    ≤15/30

    20 Volume Resistivity



    Ω·m

    ≥1.0×1014

    20 Dielectric Strength,50Hz



    MV/m

    ≥25.0

    20 Dielectric Constant,50Hz



    ----

    ≤2.35



    Air Aging Condition

    135±2×168h

    Tensile Strength Variation After Aging



    %



    ±20

    Elongation Variation After Aging

    %

    ±20

    Artificial    Weathering Aging

    Artificial Weathering Aging

    504- 1008h

    Tensile Strength Variation After Aging

    %

    ±30

    Elongation Variation After Aging

    %

    ±30





    Tensile Strength Variation After Aging

    %

    ±30

    Elongation Variation After Aging



    %

    ±30
