Application:

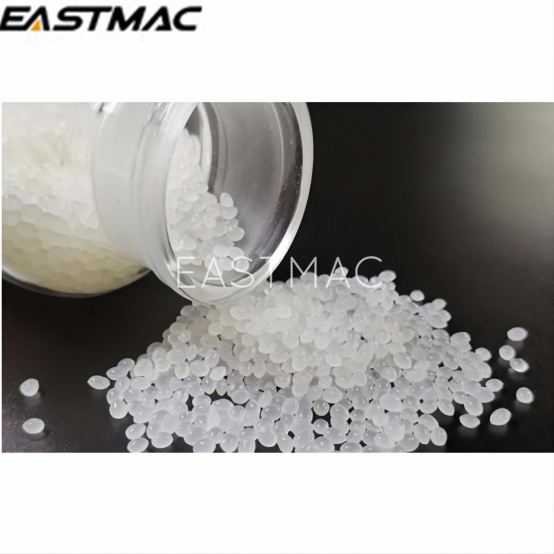

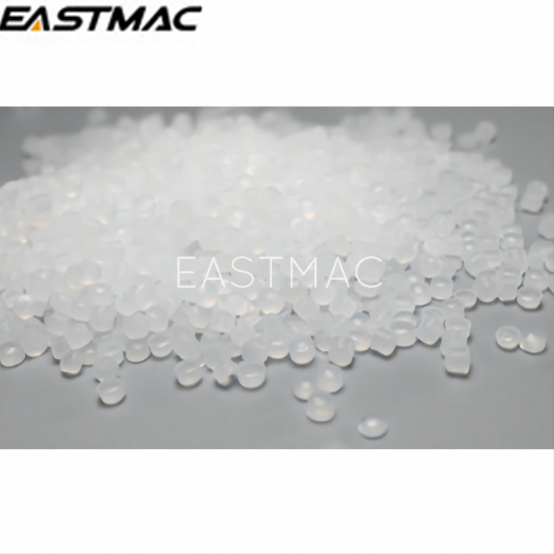

SEJ90-2-N,SEJ90-2-M are two-step silan cross-linkable insulation compounds for low-voltage cables. They are mainly used for the insulation
of low-voltage cables and control cables with working voltage for 3KV and below. The highest working temperature is 90℃.
SEJ90-2-N is suitble for squeeze tube mold production process.
SEJ90-2-M is suitble for extrusion diess mold production process.
Above two models have the same physical and electrical properties, except different production molds.
Processing Indicator
Recommend to process with the PE extruder.
Main technical data:
Model
|
Machine Barrel Temperature |
Molding Temprature
|
SEJ90-2-N SEJ90-2-M |
155- 175℃ |
180- 190℃ |
Item
|
Unit
|
Technical requirements |
|
Density
|
g/cm3 |
0.922±0.005 |
|
Tensile Strength
|
MPa |
≥13.5 |
|
Elongation at Break
|
% |
≥350 |
|
Brittle Temperature with Low Temperature
|
℃ |
-76 ≤15/30 |
|
20℃ Volume Resistivity
|
Ω·m |
≥1.0×1014 |
|
20℃ Dielectric Strength,50Hz
|
MV/m |
≥25.0 |
|
20℃ Dielectric Constant,50Hz
|
---- |
≤2.35 |
