Application:

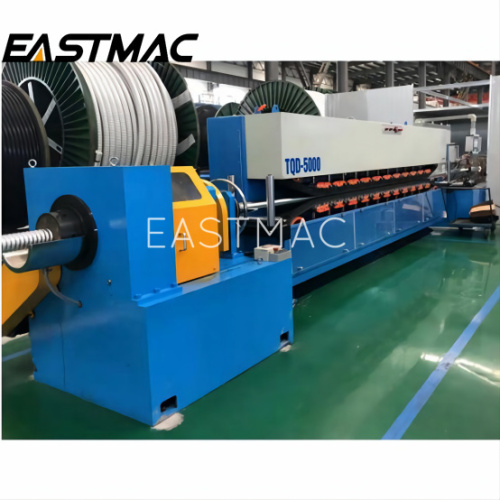

5000KG Haul-off Caterpillar machine is mainly used for help to pull cable after stranding, extruder or cabling.
Main technical data:
|
Max pulling force |
5000KG |
|
OD of applicable cable |
10~100 mm |
|
Linear speed |
40m/min |
|
Touching length of flat-belt |
2300mm |
|
Width of belt |
120mm |
|
The QTY of cylinder |
7pairs (Dia. of cylinder: 100) |
|
Driving motor |
11KW(AC motor with inverter) |
