Application:

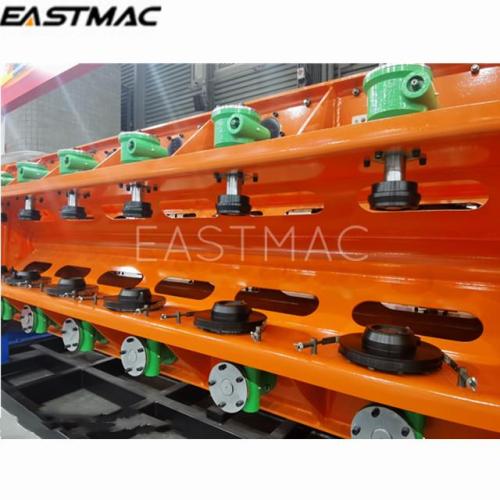

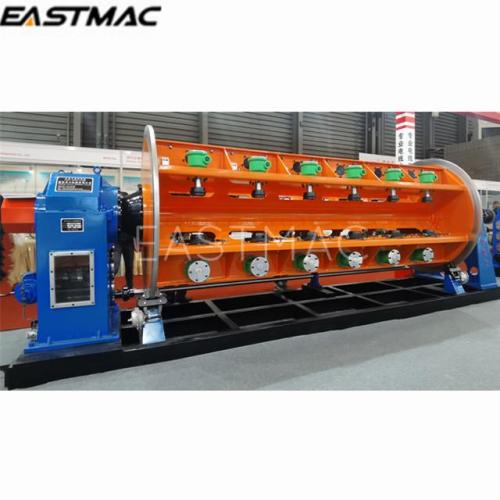

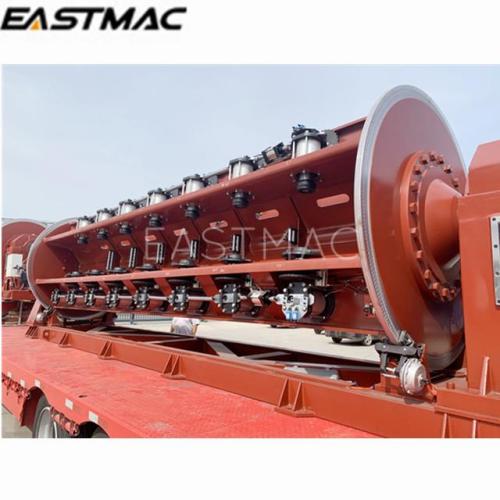

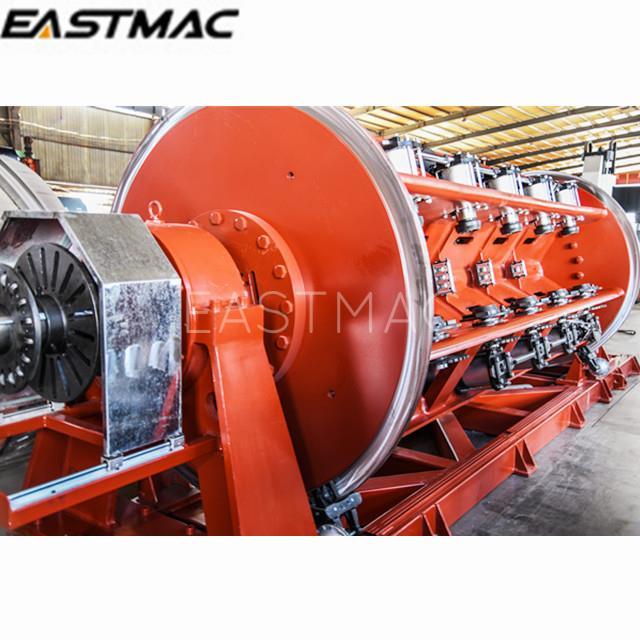

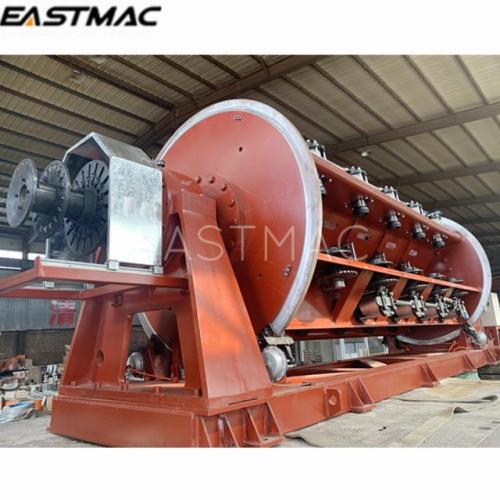

JLK-630/6+12+18B Rigid Type Stranding machine is mainly used for stranding and compacting of copper, aluminum conductors of round and sector shapes.
Products produced by Rigid Type Stranding machine:
Main technical data:
|
Diameter of single wire (Al) |
1.8 - 5.0mm |
|
Diameter of single wire (Cu) |
1.2 - 5.0mm |
|
Max. Rotating speed of cages (6B) |
262r/min(Al), 218r/min(Cu) |
|
Max. Rotating speed of cages (12B) |
239r/min(Al), 199r/min(Cu) |
|
Max. Rotating speed of cages (18B) |
216r/min(Al), 80r/min(Cu) |
|
Max. Linear speed |
50m/min |
|
Each Cage motor power |
90KW(AC) |
|
Capstan motor power |
90KW(AC) |
Main Parts:
1. 1200 pintle type pay-off stand
2. # shape wire guiding stand
3. 6B stranding cage
4. 12B stranding cage
5. 18B stranding cage
6. Wire assembly die holder
7. Wire compacting device
8. Side-bottom loading device
9. Meter counter
10. 2000 Strong dual haul-off capstan
11. 2400 portal type take-up stand with traversing
12. Electrical control system
