Application:

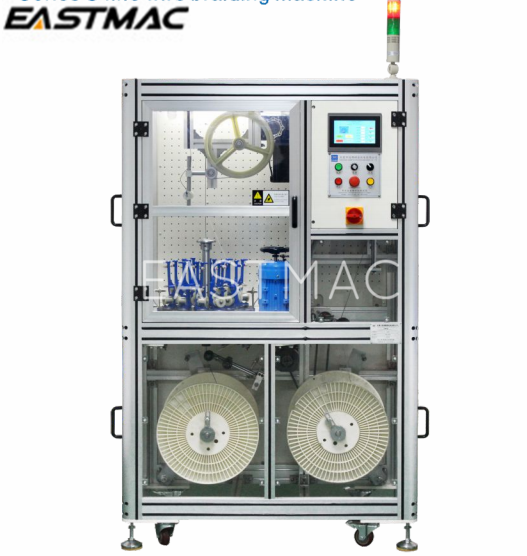

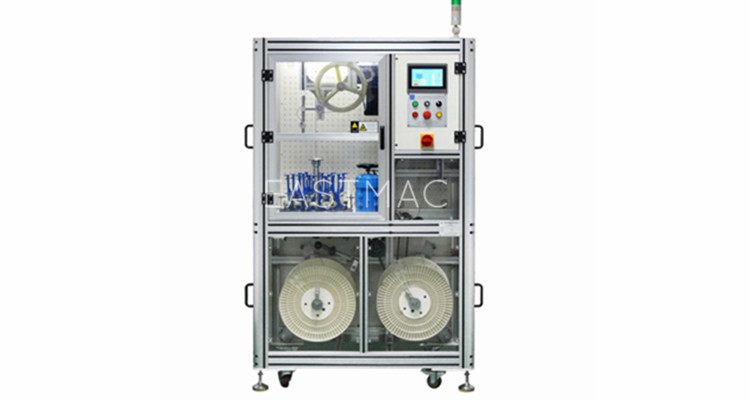

Series S braiding machine is designed for wire with R 0.025mm-0.08mm. The machine has eluminum frame, plc controlSystem
and constant tension winding device. It is your reliable chaica for extremely fine wire braiding!
Main Technical Data:
|
Model |
GB-16S1D |
GB-24S1D |
|
Speed of the Hongear |
320RPM |
320RPM |
|
Motor powerrVoltage |
0.37Kw 220V |
0.55Kw 22ov |
|
Braiding Diameter |
≤5mm |
≤8mm |
|
Braiding Pitch |
3-58PPI |
3-58PPI |
|
Output Speed |
32m/h(30PPI) |
32m/h(30PPI) |
|
Braiding Material |
Ma1al wireo0.025-0.08mm |
|
|
Bobbin Valume |
S1:42*26mn/27cc |
|
|
Pay-off and Take-up Dewice |
200-40omm |
|
