Application:

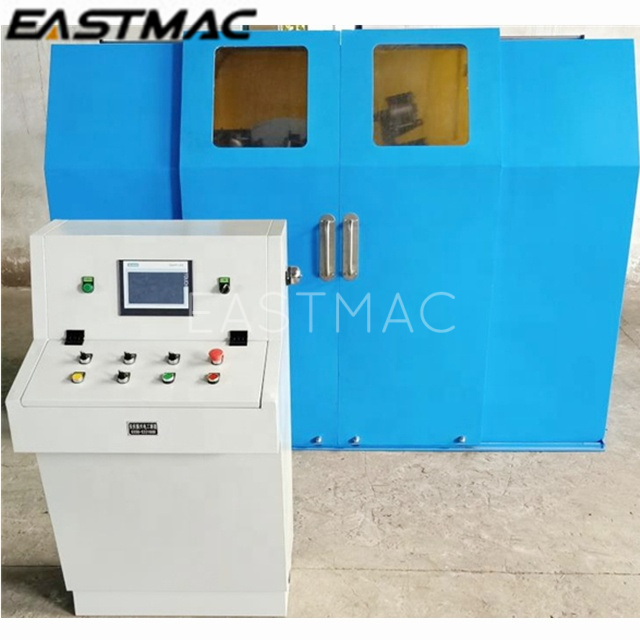

Eccentric type wire and cable metallic taping machine is mainly used for wrapping steel tape on the cable core to be cable armoring layer.
Main technical data:
|
Max. OD of taping wire |
100 mm |
|
ID of hollow shaft |
120 mm |
|
Taping pad size (O.D.× I.D.×W.) |
800 x 230mm x (15~80mm) |
|
Taping width |
800 x 230mm x (15~80mm) |
|
Thickness of steel tape |
0.2~0.8mm |
|
Max. rotating speed of taping head |
300r/min |
|
Taping material |
Steel tape |
|
Taping tension |
2.5~40 KG |
|
The structure of taping head |
2B, Eccentric |
|
Driving motor |
18.5KW (AC motor with inverter) |
|
Pitch changing |
Step-less |
|
With the function of right and left rotating and stopping work. |
|
|
With the function of stopping at tape-finish. |
|
