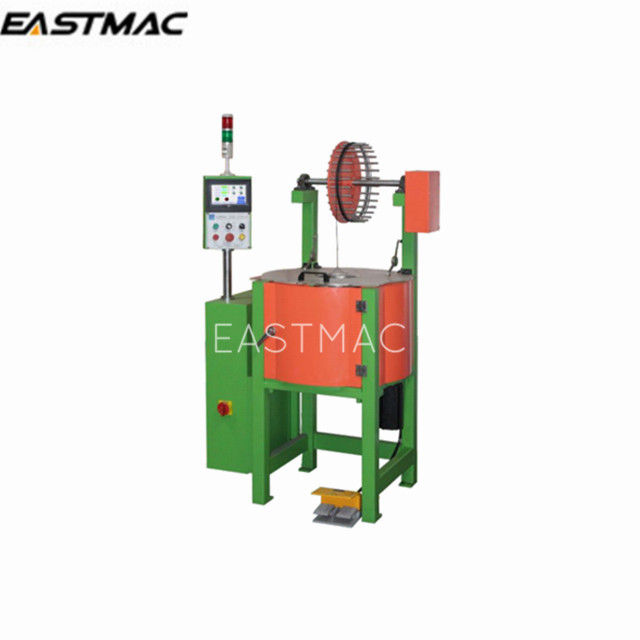

Automatically Wiring harness braiding machine braider machine

Item No.: 00497
Wiring harness braiding machine is designed for the productlon of cable harnesses for automotlve and avlatlon applications. the machine is equipped with automatic braiding pitch set up system which realizes that braiding diameter and braiding pitch can be
  • Model24/32/48A1DT
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability20 sets per month
  • Payment TermsL/C, T/T, D/P
  • More Less
    Description
    Description

    Application:

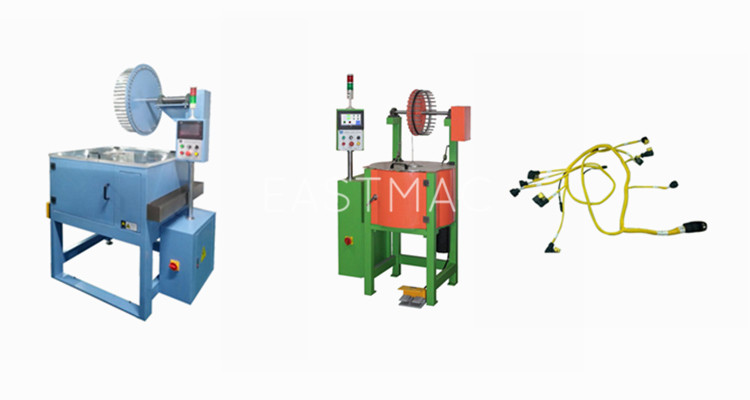

    Wiring harness braiding machine is designed for the productlon of cable harnesses for automotlve and avlatlon applications. the
    machine is equipped with automatic braiding pitch set up system which realizes that braiding diameter and braiding pitch can be
    easily and precisely set up on the control panel. With our special ergonomic design, this modelis easier to operate than the
    imported machines. The standard spindle number of this model is 16-56, special spindle number can be customized.


    Main technical data:



    Model

    24/32/48A1DT

    Speed of the Horngear

    320RPM

    Motor powerl/oltage

    0.55/0.75/1.1KW 220V

    Bralding Dlameter

    ≤6/≤10/≤15mm

    Braiding Pitch

    5-38PPI

    Braiding Material

    Chemical fiber

    Bobbin Volume

    φ47* 120mm/180cc
