Application:

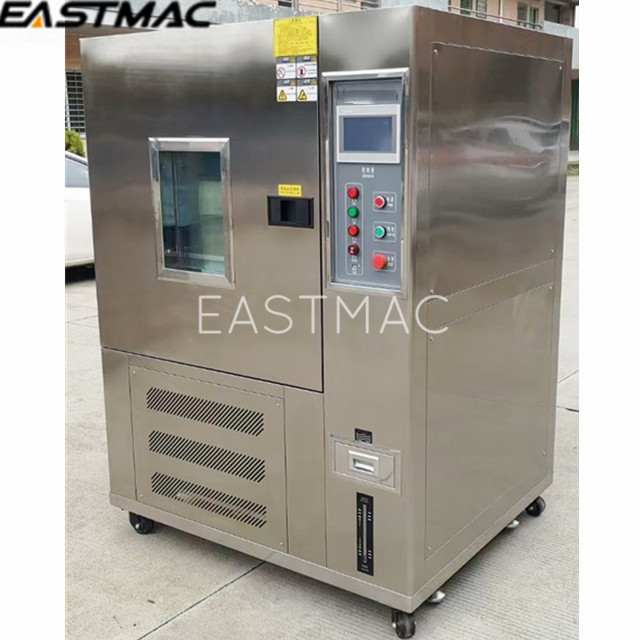

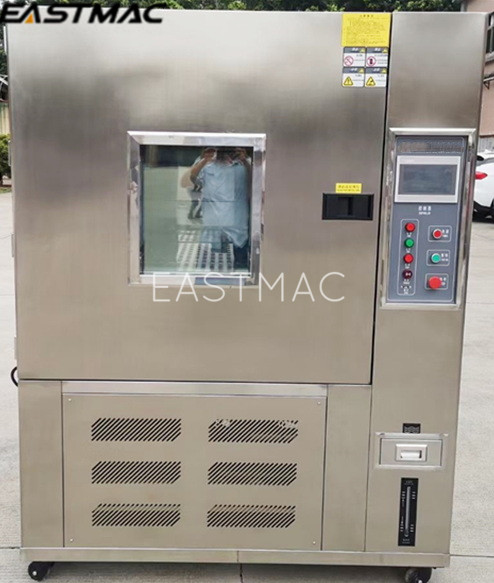

The high and low temperature testing machine can simulate the high temperature and high humidity/high temperature and low
humidity/low temperature and high humidity/low temperature and other different environment test conditions
Product parameters:
Model |
80L |
Internal dimensions (cm) | W 400mm × D500mm × H 400mm |
External dimensions (cm) |
W900mm × D900mm × H1730mm |
Temperature range | -40℃~150℃ |
Humidity range | 20%~98%RH |
Temperature and humidity analysis accuracy/distribution accuracy | 0.1℃,0.1%RH/2.0℃,3.0%RH |
Temperature and humidity control accuracy | ±0.3℃; ±2.5%RH |
Temperature rise/fall time: | about 4.0℃/min; about 1.0℃/min |
Internal and external materials | The whole machine is SUS304# stainless steel plate matte treatment, and the inner box is mirror stainless steel |
. Insulation material: | high temperature resistant high density ethyl chloroformate foam insulator material |
Humidification system | stainless steel humidification cylinder design, additional water shortage and power failure protection and super humidity protection |
. The heater | adopts Taiwan imported stainless steel fin type radiator tube heating tube |
Cooling system | Air-cooled/single-stage compressor (-40℃) Air-cooled/double-stage compressor (-40℃~-70℃) |
Protection device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse failure warning system |
Accessories | Recorder/USB interface (optional), automatic defogging glass window, test hole, operating room lamp, moving wheel, 50mm test hole, PL box lamp, two upper of lower adjustable compartments, dry and wet ball gauze |
Controller | TEMI880 |
