Application:
The machine is used for insulating cable core with PVC, PE, PP, Flame retardant polyolefin and other thermoplastic.
Main Technical Data:
|
Cable core dia |
Cable core dia:20-60mm |
|
Diameter after extruding |
Max. 70mm |
|
Line speed |
5-70m/min (Depending on wire diameter) |
|
Extruding capacity ( PvC) |
40-480kg/h |
|
Main motor |
132kw |
|
Capstan motor |
11kw |
|
Cooling water trough length |
20+2m(Movable travel 0.8m) |
|
Pay off bobbin size |
PN1250-PN2500 |
|
Take up bobbin size |
PN1250-PN2500 |
|
The production line is controlled by PLC.operating on touch screen (Optional) |
|
Machine composition

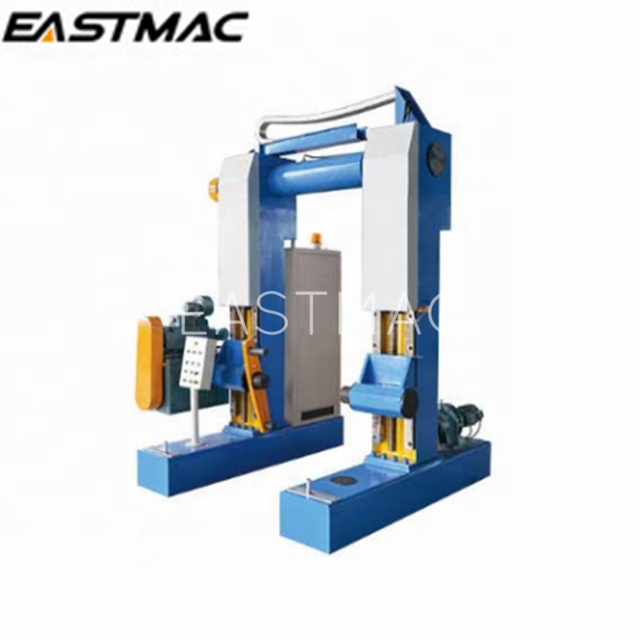

1, Porty type Pay off
2. Box wire guide
3, Tensioning device
4, SJ-120×25 Extruder
5, Cooling water trough
6, Drier

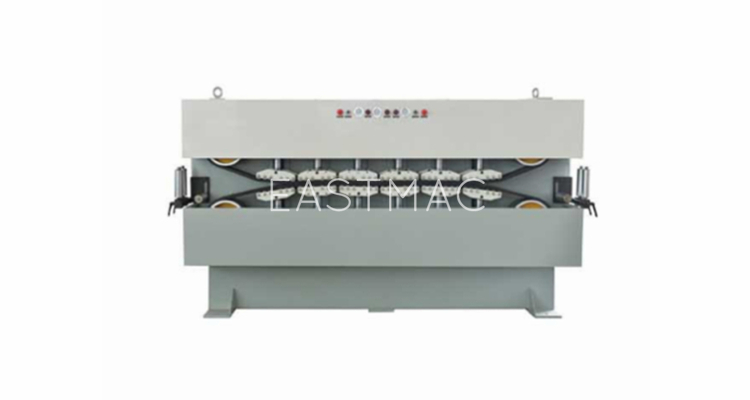

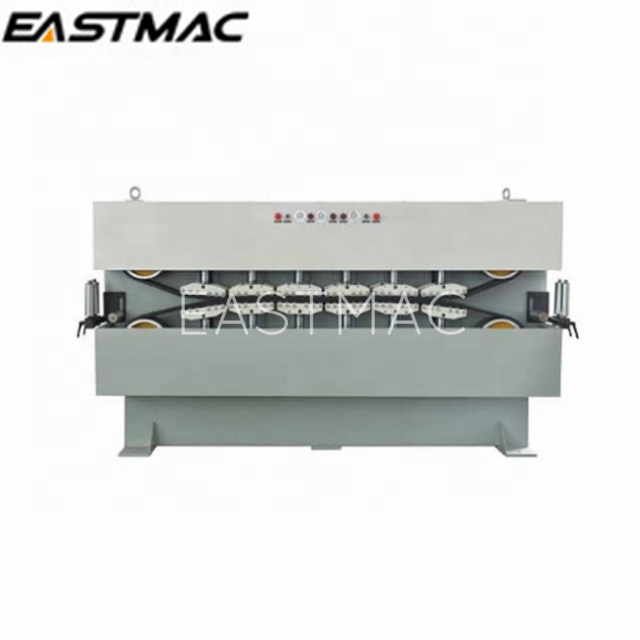

7, Caterpillar
8, Porty type take up and traversing
9, Electric control system
