Application:

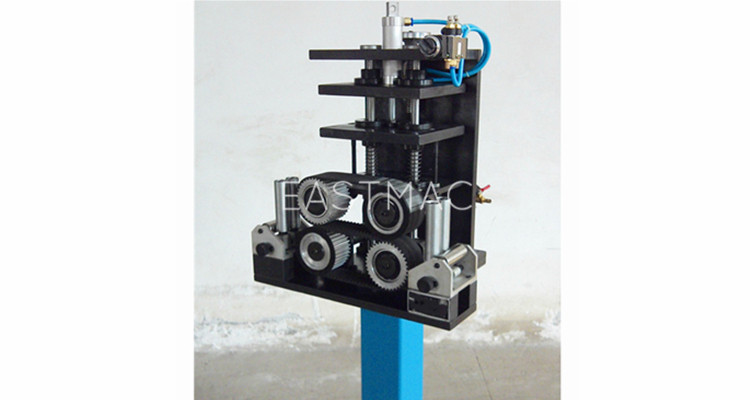

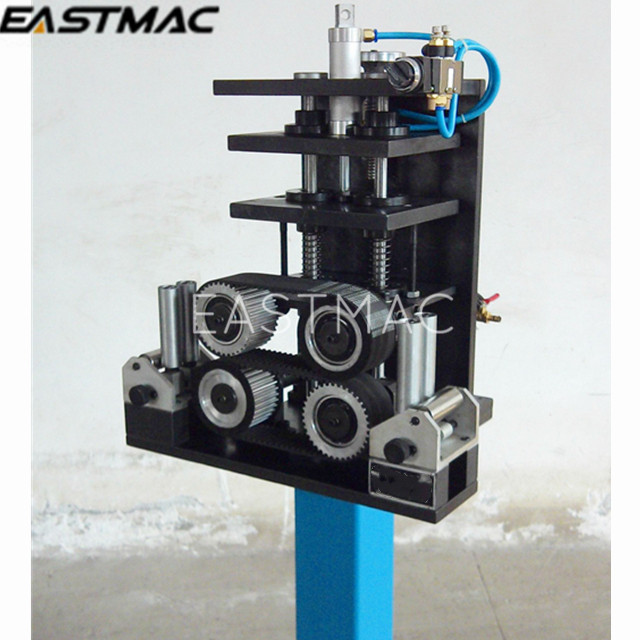

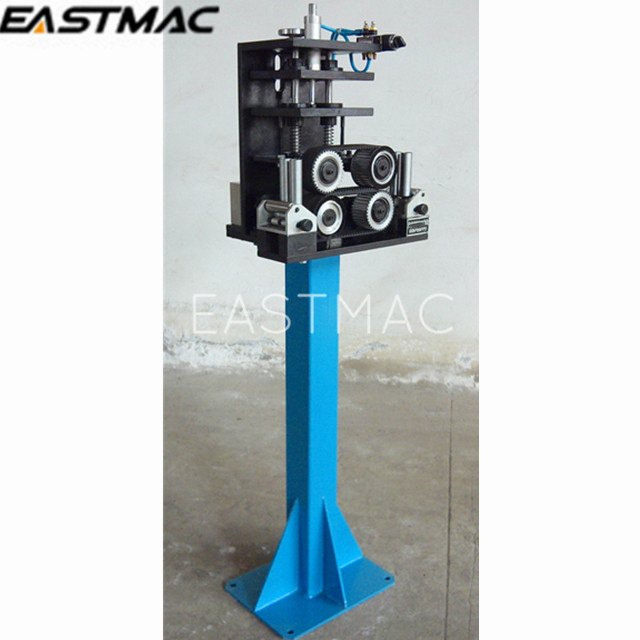

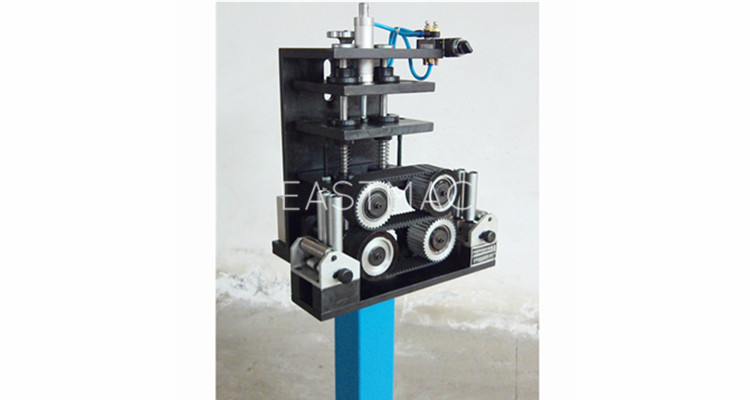

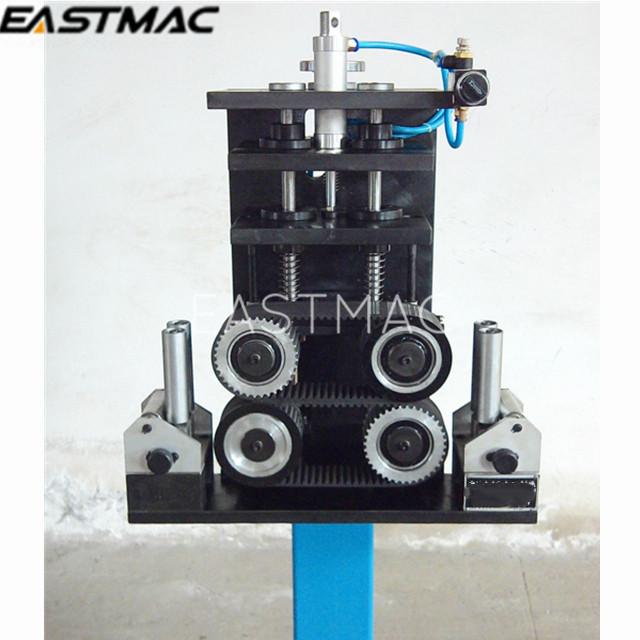

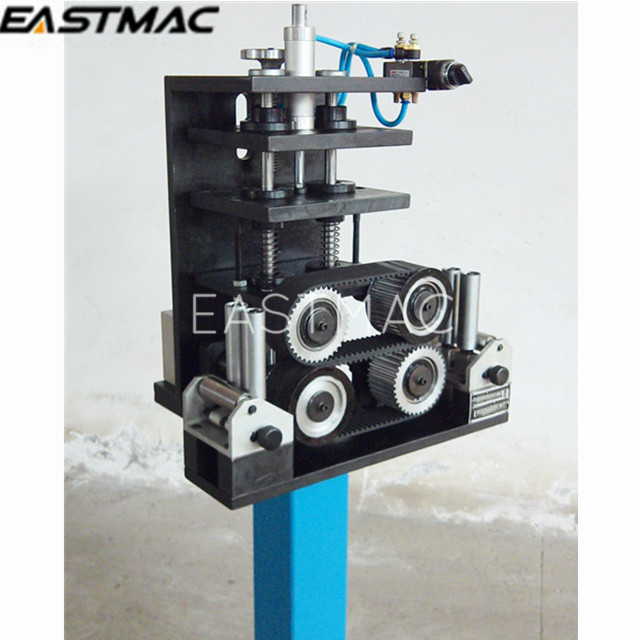

Caterpillar type structure, cylinder-type clamping, adjustable clamping and loosening, guiding rollers are installed at cable inlet and
outlet, equipped with a digital display.
Main Technical Data:
| Applicable cable dia. | ø20~ø110mm |
| Max. counting length | 9999.9m |
| Meter counting accuracy | ≤3‰ |
| Central height | 1010mm (adjustable mechanically) |
| Guiding roller dia. | 60mm |
| Power supply | AC220V (±5, 50Hz) |
| Operation direction | according to user‘s request |
| Brands info |
Bearings: NSK Timing belt: Gates Pneumatic components : Airtac |
| With the function of counting electrically. Signal will be got by sensor. | |
| Considering the heavy cable, the machine will equipped with 4 timing belt rollers, and the width of timing belt would be 130mm. | |
