Application:

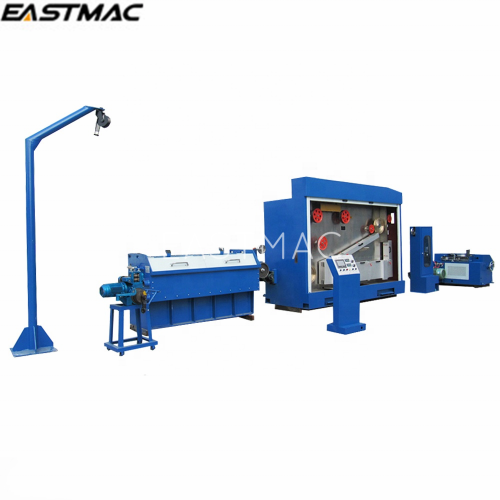

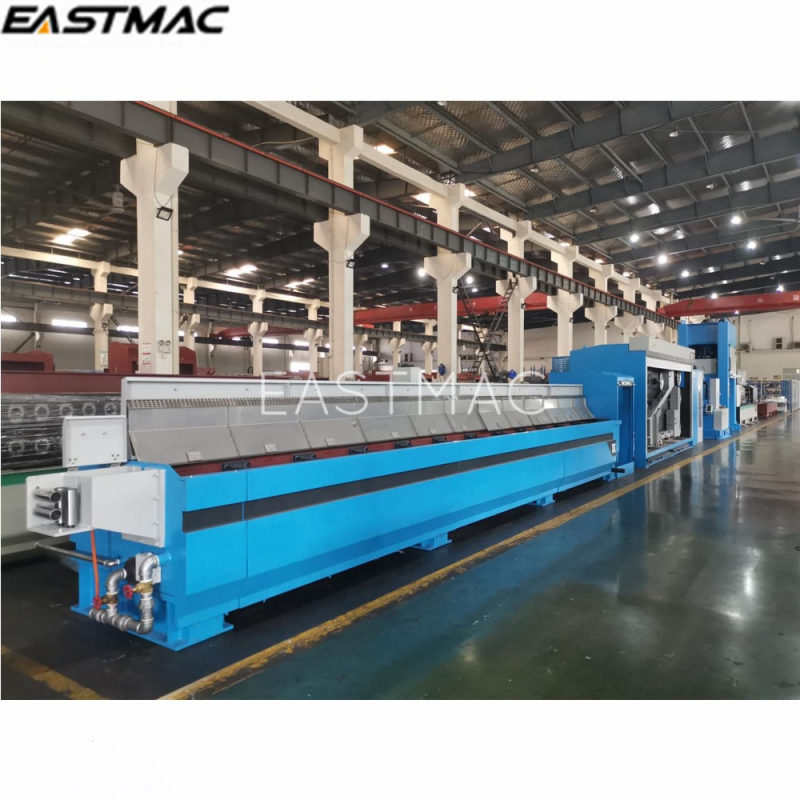

Aluminum Road Breakdown line machine is used to produce EC aluminium wire sized φ1.8 - 4.5mm from rod of φ9.5mm. The
drawing capstan is arranged in straight line and in a continuous order. The mechanical speed gets well along with the electric
speed so as to change dies quickly. It is highly praised for easy operation, high efficiency and excellent wire quality.
Products produced by Planetary type steel wire armoring machine:
Main technical data:
|
Inlet wire dia. (max.) |
9.5 mm (<130N/mm2) |
|
Final wire dia. |
1.8-4.5 mm |
|
Max. mechanical speed |
25 m/s |
|
Drawing capstan dia. |
450 mm |
|
Max. drawing pass |
13 |
|
Overall dimension |
28000×10000×5000 mm |
Main Parts:
1. Pay-off device
2. 450/13 drawing machine
3. Gear oil station
4. Wire dancer
5. 630 dual spooler

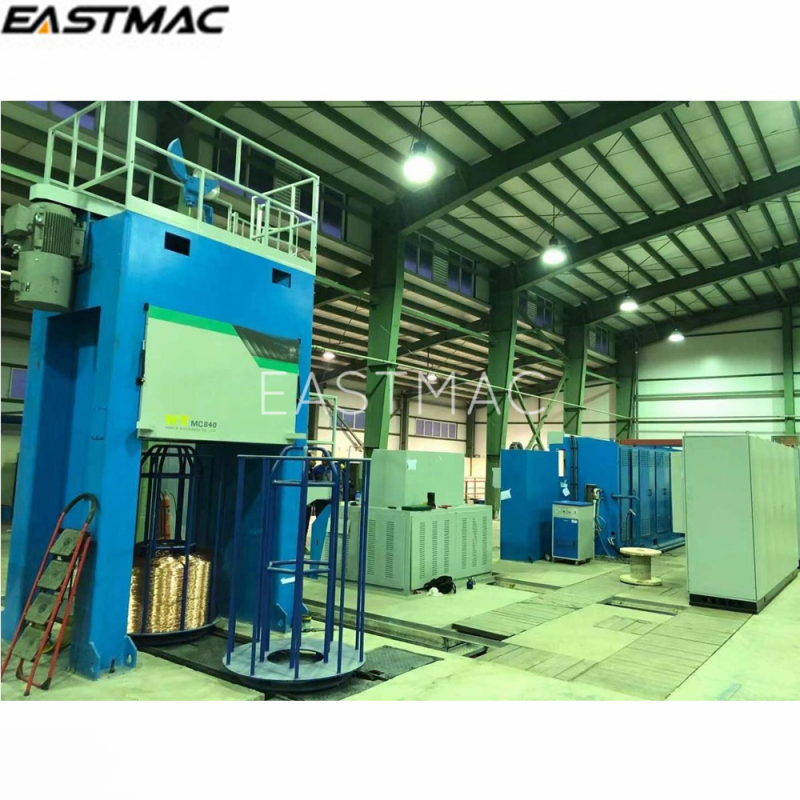

6. 820 drop coiler
7. ZE-110 pointing and threading device
8. Electrical control system
9. UN2-30 butt welding device (option)
10. AP-400 centrifugal filter (option)
11. Drawing oil unit (option)
