Application:

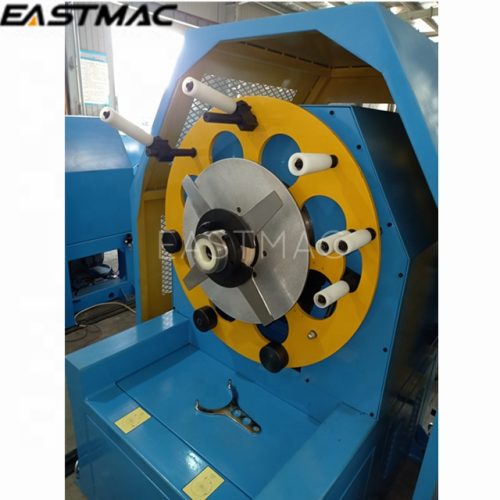

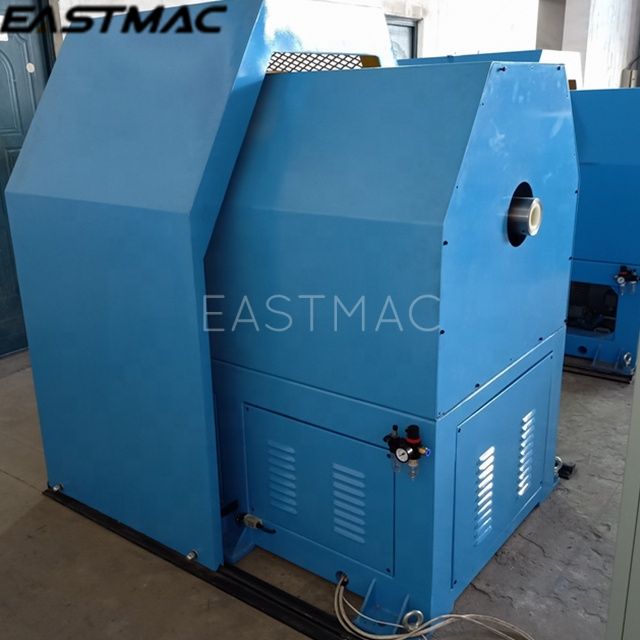

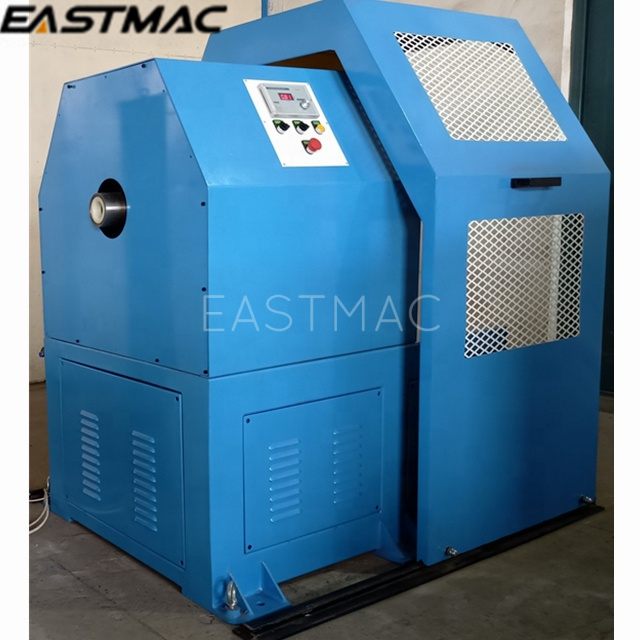

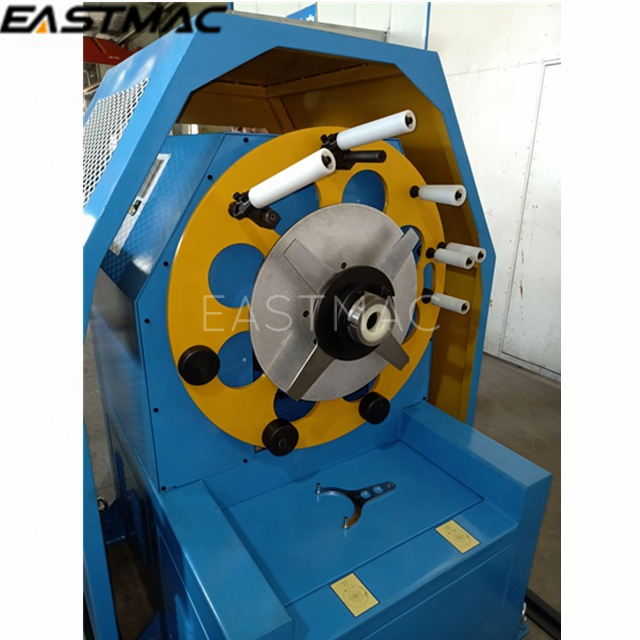

Concentric type taping machine is mainly used for wrapping copper tape on the cable.
Products produced by Concentric type copper tape taping machine:
Main Technical Data:
Applicable cable dia | 50mm | |
Tape reel size | 485 x 100 x (12.5-50) mm | |
Structure | Concentric type | |
Accumulated tape reel no | 6B | |
Max. speed | 800rpm | |
Taping pitch | 15mm~100mm | |
Taping material | copper tape 0.035mm - 0.15mm | |
Taping tension | 5N-50N | |
Motor power | 11KW (AC Motor with inverter) |
