Application:

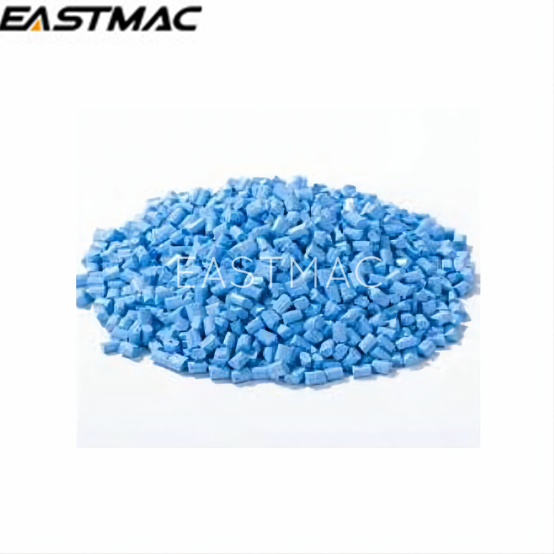

Lead-free anti-rat and anti-termite PVC jacketing compounds are granule compounds which are manufactured with mixing, plasticizing and
pelletizing processes. They regard advanced PVC resin as the basic raw material, and add special plasticizer, stabilizer and other accessory
ingredients.
Characteristics
The products have excellent mechanical and physical properties, and good processability. They meet RoHS Standard. All their properties are
referred to GB/T 8815 and GB/T 2951.38 and other standards. They are mainly used for the jacketing of cables which have anti-rat or anti-termite
property requirements.
Processing Indicator
Recommend to use single-screw extruders with L/D= 20-25.
Main technical data:
|
Model
|
Machine Barrel Temperature |
Molding Temperature
|
|
FEJZ105/FEJZ125/FEJZ150 |
130-140℃ |
150-160℃ |
|
Item
|
Unit
|
Technical requirements
|
||
|
FEJZ105 |
FEJZ125 |
FEJZ150 |
||
|
Tensile Strength
|
Mpa |
≥12.5(8.0) |
≥12.5(8.0) |
≥12.5(8.0) |
|
Elongation at Break
|
% |
≥250 |
≥250 |
≥250 |
|
Density
|
g/cm3 |
<1.35 |
<1.35 |
<1.35 |
|
Dielectric Strength
|
MV/m |
≥20 |
≥20 |
≥20 |
|
Aging Condition
|
/ |
136℃×168h |
158℃×168h |
180℃×168h |
|
Tensile Strength Variation After Aging |
% |
±20 |
±20 |
±20 |
|
Elongation Variation After Aging |
% |
±20 |
±20 |
±20 |
|
Brittle Temperature With Low Temperature Impact
|
℃ |
≤-40 |
≤-40 |
≤-40 |
|
20℃ Volume Resistivity
|
Ω.cm |
≥1.0×1012 |
≥1.0×1012 |
≥1.0×1012 |
