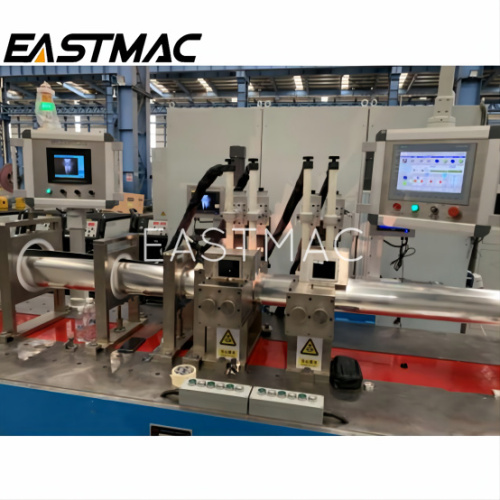

EHV Cable Metal Pipe Forming and Corrugating Device

Item No.: 00574
The production line use different dies to produce metal sheathing for railway signal cables, flexible fireproof cables, medium voltage cables, copper alloy through ground wires for high speed train and other cables.
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability60 Sets Per Month
  • Payment TermsL/C,T/T
  • More Less
    Description
    Description

    Application:

    The production line use different dies to produce metal sheathing for railway signal cables, flexible fireproof cables, medium

    voltage cables, copper alloy through ground wires for high speed train and other cables. The production line can produce

    metal sheath for railway signal cables, flexible fireproof cables, medium-voltage cables etc. After precise cutting the clean

    copper tape’s two sides (or aluminum tape and stainless steel tape), used the special welding fabrication mould is used for

    longitudinal shaping and continue welding longitudinal seam with protection of indifferent gas. The finished products are

    made through reduction diameter pipe.

    Products produced by  DAG10-60 metallic pipe forming and corrugating tandem line:

    final products.jpg

    Main technical data:

    1

    Welding dia.

    10-60mm

    2

    Cable dia.

    8-56mm

    3

    Welding material

    Copper tape, Al tape, Stainless steel tape

    4

    Linear speed

    0-20mpm

    5

    Welding current

    30-300A

    6

    Corrugating shape

    Ring type and spiral type

    7

    Corrugating depth

    0.5-4mm

    8

    Corrugating pitch

    5-25mm

     Main Parts:


    LAY-OUT Drawing.jpg
