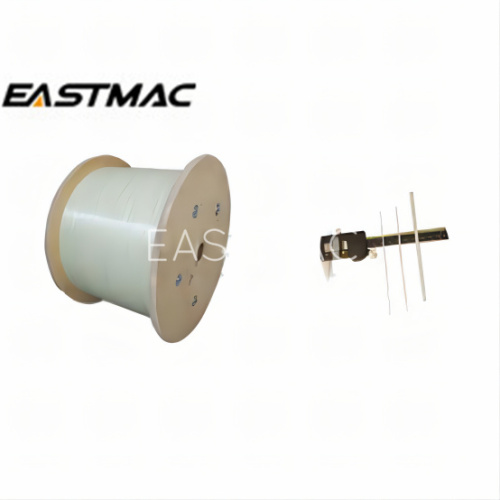

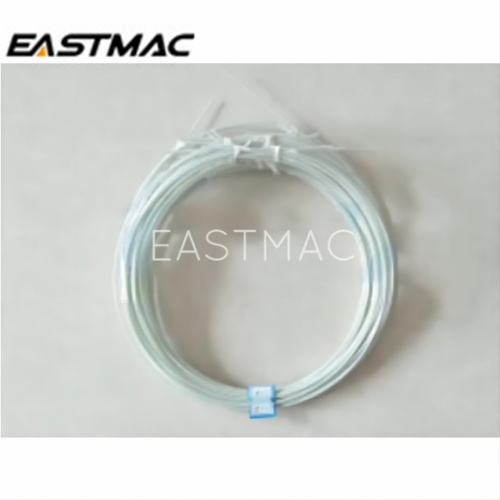

FRP Optical Cable Core Fiberglass Rod 0.4mm 4.5mm Glass Fiber Reinforced Plastic Strength Member

Item No.: 00616
Fiber Reinforced Plastic (FRP) serves as a central strength member for loose tube design over which loose tubes are stranded in fiber optic cables. It is a composite of glass fiber and synthetic resin.
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability1000 tons per month
  • Payment TermsL/C,T/T
  • More Less
    Description
    Description

    Application:

    Fiber Reinforced Plastic (FRP) serves as a central strength member for loose tube design over which loose tubes are stranded in fiber optic cables.

    It is a composite of glass fiber and synthetic resin.

    Main technical data:

    Size

    0.4 to 4.5mm

    Glass Content

    80 (DIN EN ISO 1172)

    Density

    2.10 g/cm3 (DIN 53479)

    E-Modulus

    Greater than 50,000 N/mm2 (DIN EN ISO 527-4)

    T. Strength of area

    1500 N/mm2 (DIN EN ISO 527-4)

    Elongation at break

    Greater than 2.5% (DIN EN ISO 527-4)
