Application:

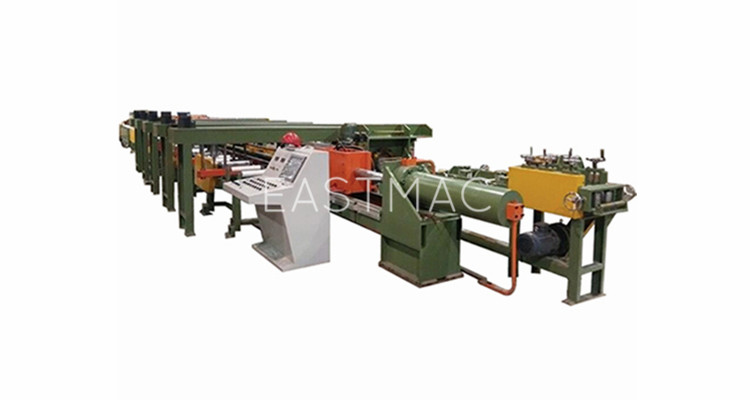

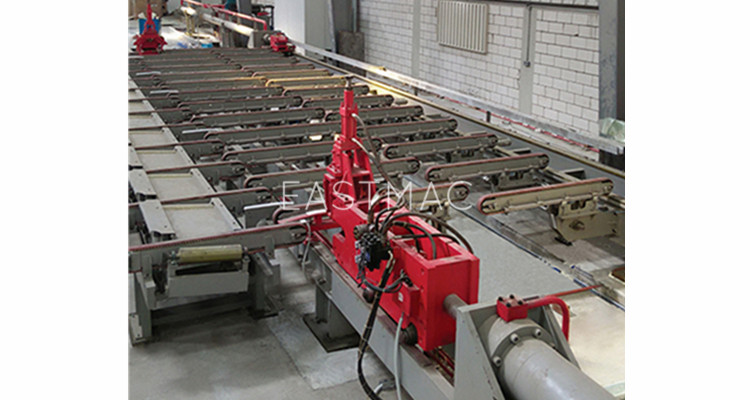

We have to add 1 set 100T tension straightening machine in normal hydraulic automatic drawing line. After drawing, each copper bus
bar will get tension straightening for better straightness. By this way, the quality of product will be improved. If no need to do straightening,
the deliver car will take copper bus bar directly to conveyor roller.
Technical parameters
|
Model |
JZ(Ⅰ)-50-12 |
|
|
Drawing force |
50t |
Drawing |
|
Max drawing length |
12m |
|
|
Width of copper bar |
≤200mm |
|
|
Thickness of copper bar |
≤20mm |
|
|
Drawing speed |
3~15m/min |
|
|
Return speed |
45m/min |
|
|
Main motor |
75kw |
|
|
Straightening force |
100t |
Straightening |
|
Max straightening length |
12m |
|
|
Main motor |
18.5kw |
|
Application:
We have to add 1 set 100T tension straightening machine in normal hydraulic automatic drawing line. After drawing, each copper
bus bar will get tension straightening for better straightness. By this way, the quality of product will be improved. If no need to do
straightening, the deliver car will take copper bus bar directly to conveyor roller.
Technical parameters
|
Model |
YLB-JZ(Ⅰ)-50-12 |
|
|
Drawing force |
50t |
Drawing |
|
Max drawing length |
12m |
|
|
Width of copper bar |
≤200mm |
|
|
Thickness of copper bar |
≤20mm |
|
|
Drawing speed |
3~15m/min |
|
|
Return speed |
45m/min |
|
|
Main motor |
75kw |
|
|
Straightening force |
100t |
Straightening |
|
Max straightening length |
12m |
|
|
Main motor |
18.5kw |
|
