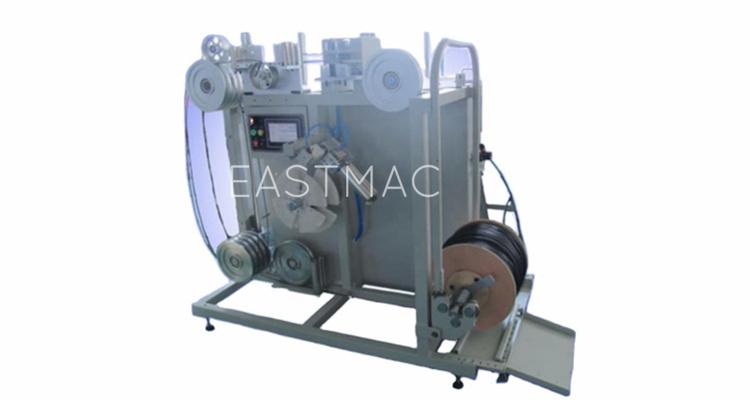

Application:
It is used for For fiber cable cutting, the fiber cable wrapped around the cylinder is unrolled and cut into segments according
to the set length and quantity, and then rewound into spools.
Main technical data:
|
1 |
Voltage |
220VAC, 50/60Hz
|
|
2 |
Power
|
2.2 kW
|
|
3 |
Feeding speed
|
average 4m/s
|
|
4 |
Length control accuracy
|
0.3%
|
|
5 |
Length resolution
|
10mm |
|
6 |
Maximum metering length
|
999 m
|
|
7 |
Dimension
|
L 1600mm x W 950mm x H 1500mm
|
|
8 |
Net weight
|
300Kg
|
Main Feature:
High degree of automation: automates the entire operation process from raw material to finished product, including length measurement, counting, cable unwinding, cutting and winding
High measurement accuracy of length: The measurement error caused by cable slip and distortion is eliminated by using the follow-up measurement technology, and high measurement accuracy is achieved by means of measurement compensation
High efficiency: 4 m/s on average
Simple and flexible operation: Start/stop/pause/resume of the device can be controlled with a single button for easy and intelligent operation;The touch screen panel can be set up and maintained
Performance stability: Strong mechanical structure, intelligent instrumentation and software make the equipment stable and reliable
Cutter is completely reliable: The unique shear-cutter structure can reliably and completely cut fiber optic cables with steel wire
Calibration function: Easy to set length compensation, convenient for equipment and quality inspection personnel to check the length
Intelligent Control: Intelligent software controls and monitors the operation of the entire device, running smoothly and reliably
Quick clamping: Automatic expansion and contraction rapid binding coil can be expanded and contracted and unloaded within 2-3 seconds, and the wire after lapping is tied on the machine and can be removed easily, making the operation simple and convenient
Circle height adjustable: The position of the rear baffle of the fast loading and unloading disks can be adjusted to meet the requirements of different tying heights
