Application:

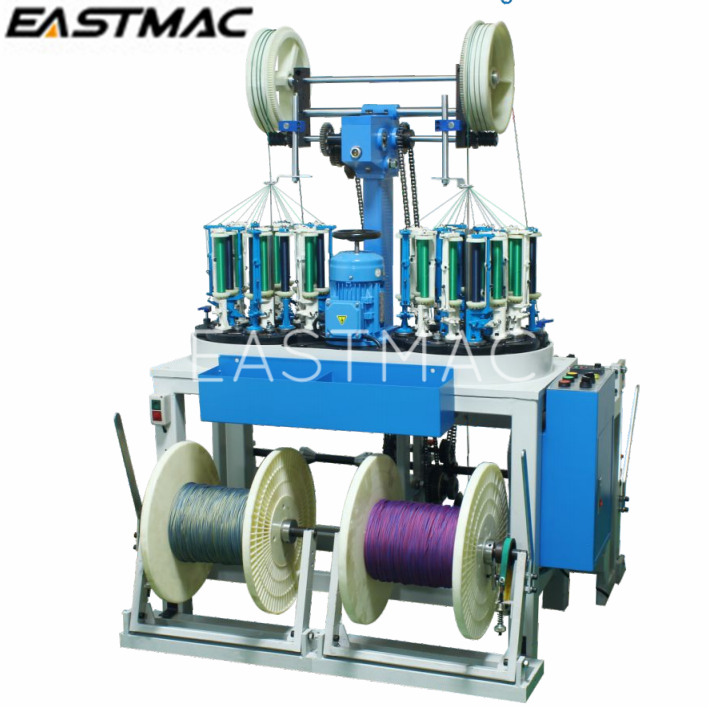

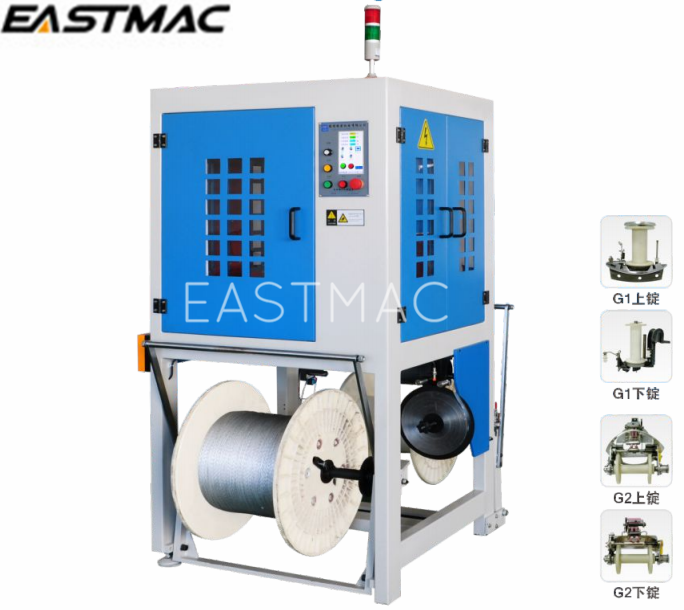

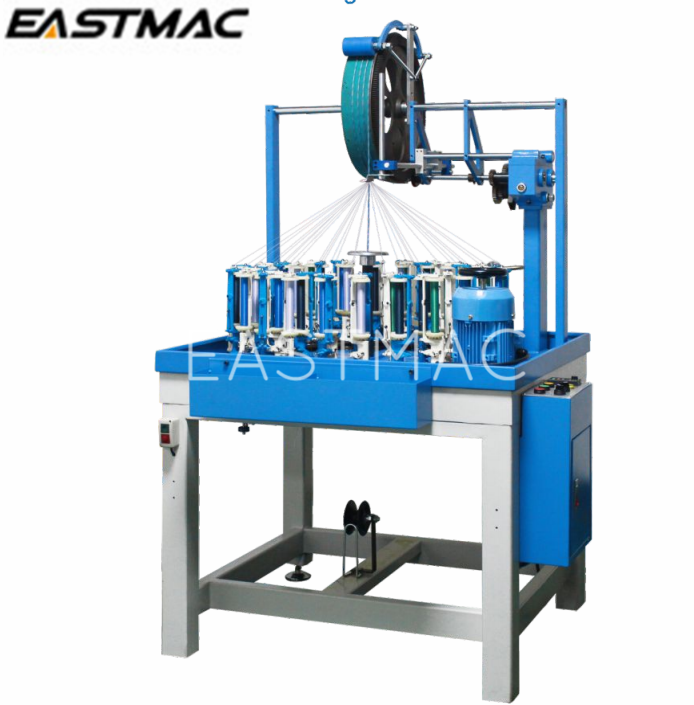

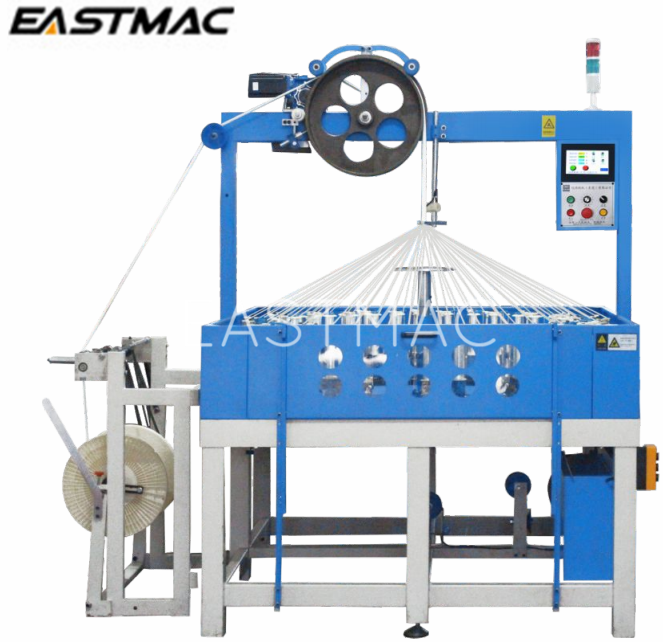

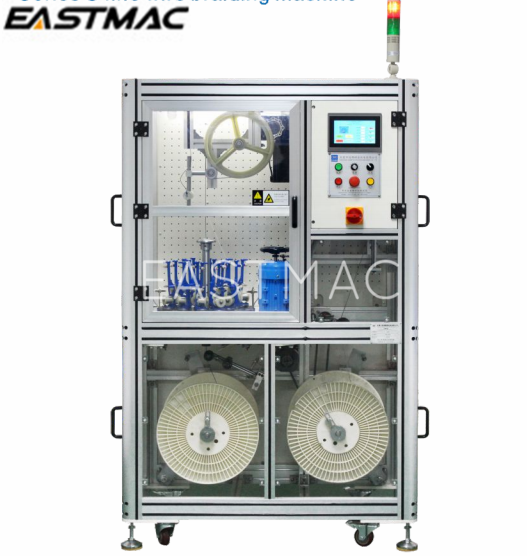

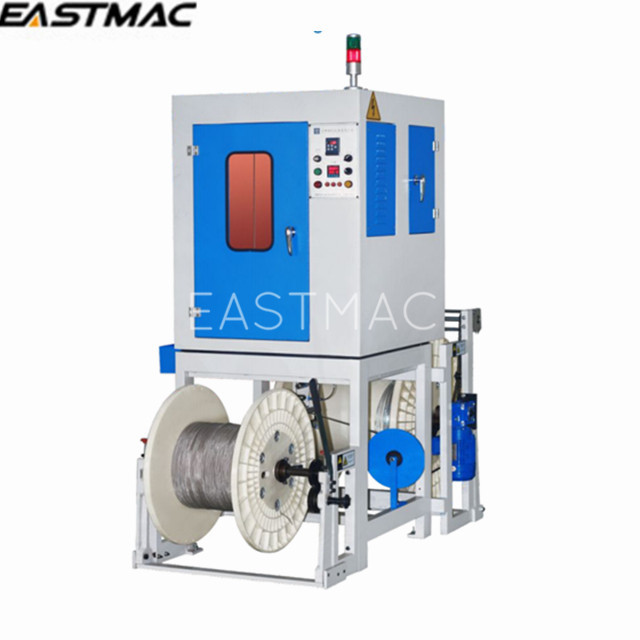

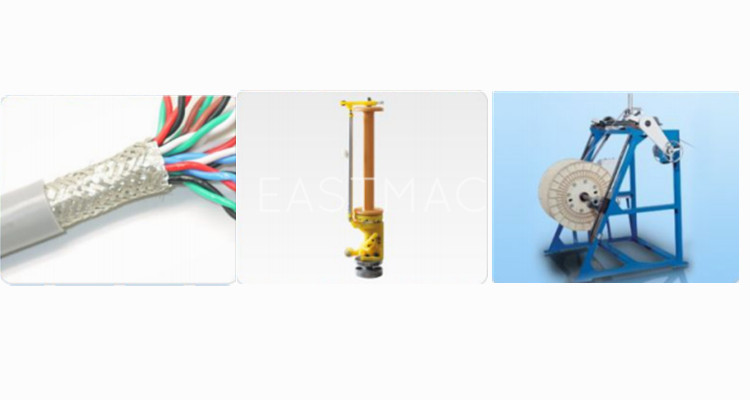

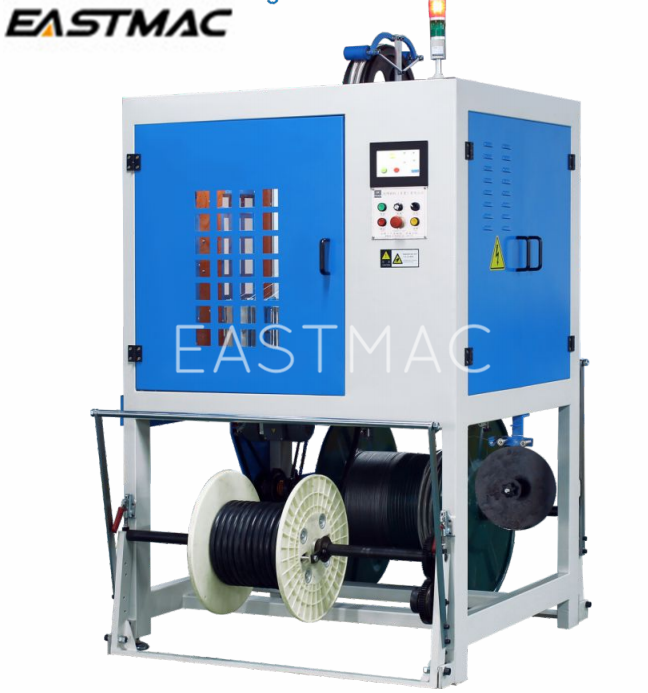

Series C wire braiding machine is suitable for all kinds of shielding layer and reinforcing layer of cable,optional : seperate take-up
and pay-off stand , plc operate system.
Main Technical Data:
|
Model |
GB-16/24/32 C1D |
|
Speed of the Horngear |
260RPM |
|
Motor power/voltage |
0.75/1.1/1.5KW 220V |
|
Braiding Diameter |
≤15≤20/≤25mm |
|
Braiding Pitch |
3-38PPI |
|
Output Speed |
150m/h(5PPI) |
|
Braiding Material |
Metal wire 0.10-0.18mm |
|
Bobbin Volume |
C3:65*210mm/635cc |
|
Pay-off and Take-up Device |
Friction takeup and payoff reel/400-800mm |
