Product Description

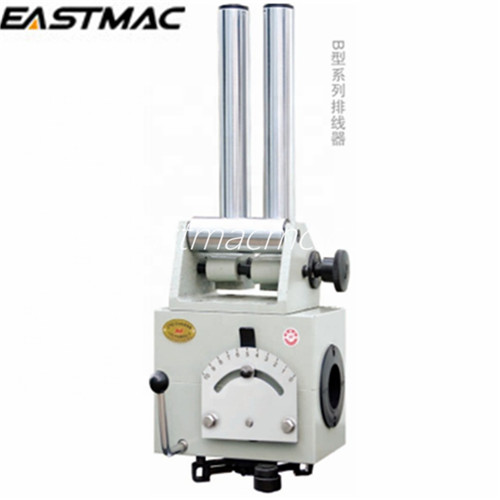

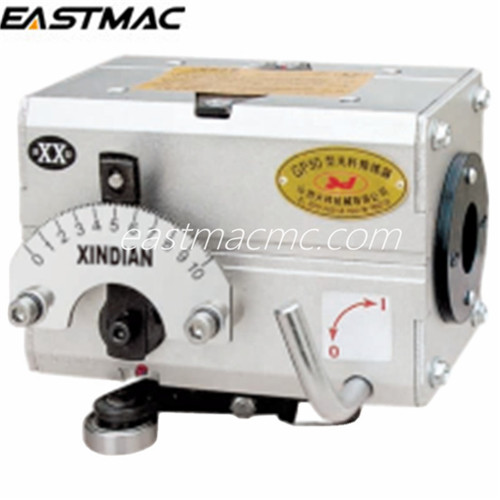

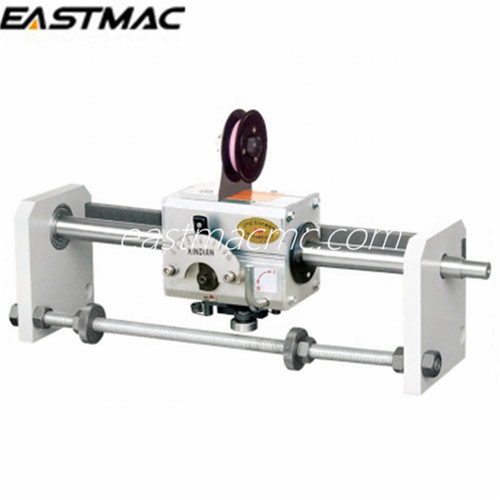

Traverser device
Four major advantages:
Stepless speed regulation: The take-up shaft transmits a certain speed to the polished rod. Without changing the rotational speed of the polished rod, you can adjust the speed of the reciprocating movement of the traversing device in the axis of the polished rod at will by simply turning the indicator on the dial Set from 0 to the maximum pitch value.
Instantaneous conversion: No need to change the rotating direction of the polished rod, when the movable arm touch wheel hits the reversing block, the walking direction of the arranging device can be changed instantaneously, and the reversing time is less than 1 second.
High-speed work: The wire arranging device moves linearly on the polished rod at a speed of 0.4 m/s, which satisfies the occasions where the wire arranging speed is high and the reversing is extremely frequent.
Release device: The cable flexing device is equipped with a releasing device, which can release the flexing ring and the polished rod without stopping the machine. The hand-held cable flexing device can be placed in any position of the polished rod, and the cable can be removed from the end. The ministry began to work.
Maintenance
The maintenance work is mainly to make the arranging device achieve instantaneous conversion, uniform pitch back and forth, and proper thrust.
Reversing device: Both the fixed arm and the movable arm are fixed and rotated on the central square frame axis. There are two structures to move the swing angle of the square frame to make the case move back and forth on the optical axis, namely: torsion spring and compression spring, torsion spring and compression spring must maintain a certain torsion and pressure, and compression spring must maintain symmetry It is necessary to replace the new one in time when the temperature, fatigue and fall off, so as not to cause failure to change direction.
Packaging & Shipping
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Our Services
Warranty Period - 12Months:
After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
FAQ
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
