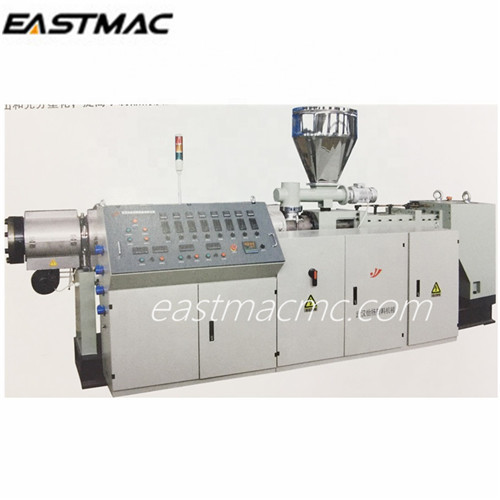

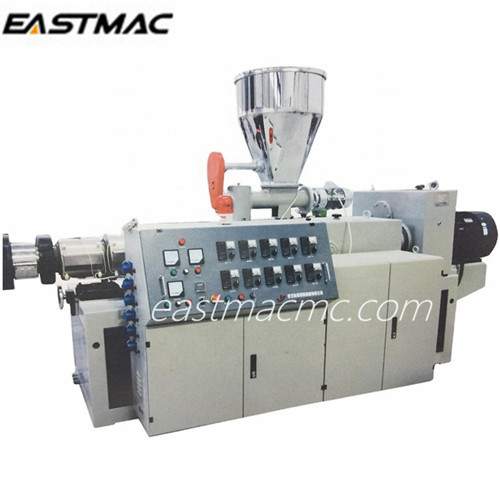

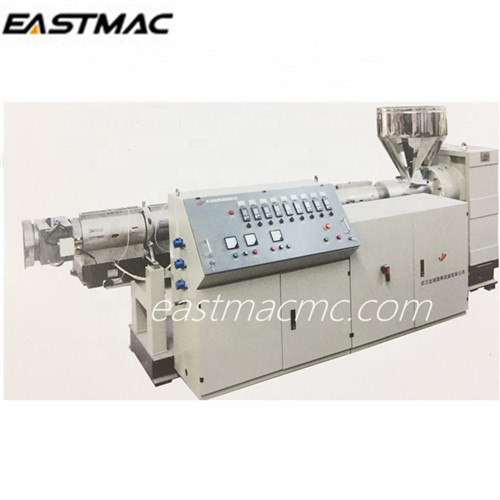

SJS series parallel twin screw plastic extruder
Application:
This machine has large aspect ratio screw, low temperature plasticizing mixing elements, large torque gear reduction system, long effect thrust bearing, flexible combined structure and reliable electrical dragging system.
Heteroplane double helix upgrade from 18:1 to 23:1, the increase of plasticizing section length and equidistance equidiameter metering section, ensure the stable extrusion and full plasticizing of materials, improve the quality of products.
Main technical parameters:
|
Model
Parameter |
65*26 |
80*18 |
95*22 |
100*22 |
130*23 |
|
Diameter(mm) |
65 |
80 |
95 |
100 |
130 |
|
L/D |
26:1 |
18:1 |
22:1 |
22:1 |
23:1 |
|
Screw Rotation Speed(r/mm |
50 |
27.5 |
45 |
35 |
34.3 |
|
Main Motor |
22 |
18.5 |
45 |
55 |
160 |
|
Output |
150~180 |
160~200 |
200~400 |
350~450 |
650~900 |
|
Weight |
3000 |
3000 |
5000 |
5500 |
8500 |
|
Center Height |
1000 |
1000 |
1100 |
1000 |
1300 |
