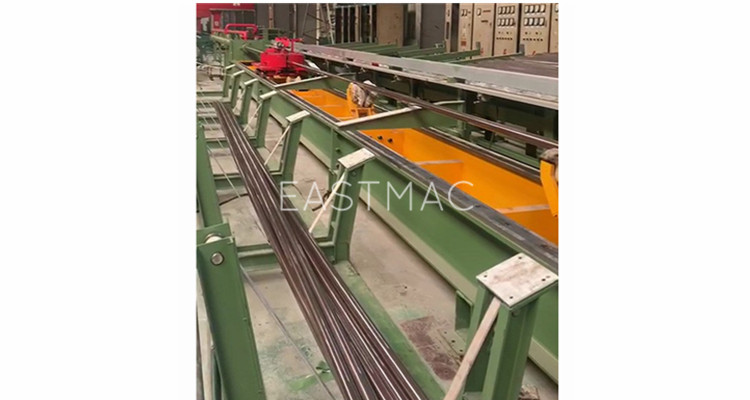

Bar hydraulic drawing machine
Description
It is used to drawing copper (aluminum) rod and alloy rod and steel rod. It also can be used to peeling drawing for brass rod.
Features
1.High automatic, automatic loading, drawing and discharge to storage.
2.With online push pointer, no need to make head pointing. it can decrease labor and increase efficiency.
Production process
Billet loading→ billet upender→ transport by roller→ clamp and enter drawing die→ jaw clamp→ drawing→fall into storage table
Pipe hydraulic drawing machine
Description
This machine can be used to drawing copper and aluminum tube. After drawing, the inner and outer diameter, the surface fineness and
physical property can reach requirement.
Features
High automatic, automatic loading, feeding, drawing and unloading.
Production process
Raw tube loading→pass through inner die→enter drawing die→clamp→ drawing→ transport → fall into storage table
Technical parameters
Model |
GYLB-50-12 |
Drawing force |
50t |
Max drawing length |
12m |
Drawing speed |
3~15m/min |
Return speed |
45m/min |
Main motor |
75kw |
